Product Details:
|
|
| Place of Origin: | China |
|---|---|
| Brand Name: | Mason |
| Certification: | SGS CE |
| Model Number: | M-000 |
|
Payment & Shipping Terms:
|
|
| Minimum Order Quantity: | 50 SHEETS |
| Price: | Negotiable |
| Packaging Details: | Max 1500kgs on one pallet |
| Delivery Time: | 7-15DAYS |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 10000KGS PER DAY |

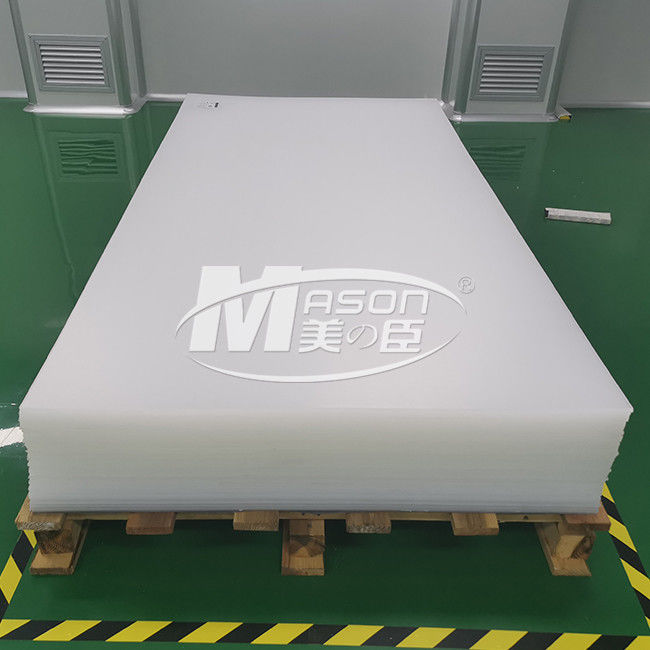

Mason V0 Grade Flame Retardant Acrylic Sheet 10mm
48*96 Inches For Elevator Glass
“MASON” flame-retardant acrylic plate
As the acrylic plate non-combustible in flame or with slow burning speed and extinguishing automatically
when leaving the flame and as a new environmentally friendly material,the flame-retardant acrylic integrates
the advantages of acrylic and polycarbonate and its strength and impact toughness are superior to acrylic.
“MASON” flame-retardant acrylic quality standard is executed according to Q/TDQU01-2005 standard.The
oxygen index is greater than 30 and the light transmittance is greater than 90%,meeting the environmental

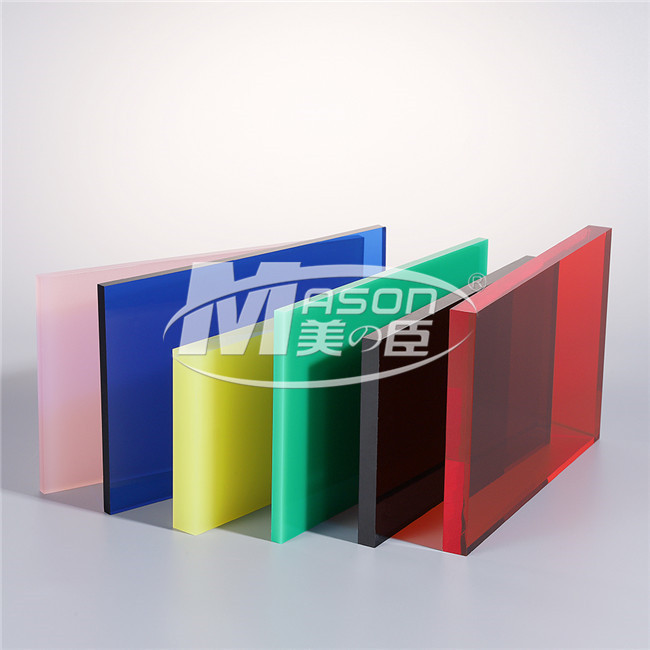

protection requirements. A variety of colors can be produced.
Application
Widely used in the buildings, aviation, subways, vehicles, advertisement decoration, elevators, electronics
and other industries with high requirements for fire protection level.
| Item | Test Result | Item | Test Result |
| Rockwell Hardness(M) | 97 | Modulus of elasticity in tension, Mpa | 3.03 |
| Vicat Softening Temperature(1.8MPA) | 101 | Rockwell Hardness(R) | 124 |
| Coefficient of Thermal Expansion ℃-1 | 7.0*10-5 | Resistance to crazing in solvent | No crazing |
| Dimensional Stability(shrinkage) % | 1.9 | Charpy Non-notch Impact Strength KJ/M2 | 21.9(C) |
| Tensile strength, Mpa | 74.7 |
| Code | Size with rubber edge | Size after cut edge |
| Q | 1250*1850mm | 1210*1820mm |
| L0 | 1250*2450mm | 1210*2420mm |
| L1 | 1270*2490mm | 1220*2440mm |
| L2 | 1310*2530mm | 1270*2490mm |
| Y | 1650*2600mm | 1610*2660mm |
| N | 1550*3050mm | 1510*3020mm |
Product Display
Flame retardant rating: “MASON” flame-retardant plate reaches UL94-V0 level through the test by vertical
burning method.
Strong flame retardancy and self extinguishing when leaving the fire.
APPLICATION
MASON® Flame Retardant Acrylic is ideal for a variety of industries and applications including electrical
devices, aircraft components, switchgear covers and other current-carrying items.
FAQS
Q1: What is the delivery time?
A:Generally it takes 7-10 days for 1*20 ft., 15-20 days for 1*40 ft.
.
Q2: What is the payment term?
A: T/T 30% upon PO amount,70% balance before shipment.
Q3: How about the after-sale service?
A: If there has any quality problems when you receive our products, show us photos and we will afford the
lost from next order.
