Product Details:
|
|
| Place of Origin: | China |
|---|---|
| Brand Name: | Mason |
| Certification: | SGS CE |
| Model Number: | M-000 |
|
Payment & Shipping Terms:
|
|
| Minimum Order Quantity: | 90 SHEETS |
| Price: | Negotiable |
| Packaging Details: | Max 1500kgs on one pallet |
| Delivery Time: | 7-15DAYS |
| Payment Terms: | T/T, Western Union, L/C |
| Supply Ability: | 10000KGS PER DAY |
High Resistant Fire Prevention V0 Flame Retardant
Acrylic PMMA Plexiglass Sheet
Description
MASON® flame retardant acrylic sheet is a flame inhibiting, UV-stable plastic sheeting and glazing product
that is virtually unbreakable.The quality standard of Mason flame retardant acrylic is implemented according
to Q/ tdqu01-2005 standard,with oxygen index>30 and light transmittance>90%,which meets the requirements
of environmental protection, and can produce a variety of colors.
| Item | Test Result | Item | Test Result |
| Rockwell Hardness(M) | 97 | Modulus of elasticity in tension, Mpa | 3.03 |
| Vicat Softening Temperature(1.8MPA) | 101 | Rockwell Hardness(R) | 124 |
| Dimensional Stability(shrinkage) % | 1.9 | Charpy Non-notch Impact Strength KJ/M2 | 21.9(C) |
| Tensile strength, Mpa | 74.7 |
| Code | Size with rubber edge | Size after cut edge |
| Q | 1250*1850mm | 1210*1820mm |
| L0 | 1250*2450mm | 1210*2420mm |
| L1 | 1270*2490mm | 1220*2440mm |
| L2 | 1310*2530mm | 1270*2490mm |
| N | 1550*3050mm | 1510*3020mm |
| M | 2050*3050mm | 2010*3010mm |

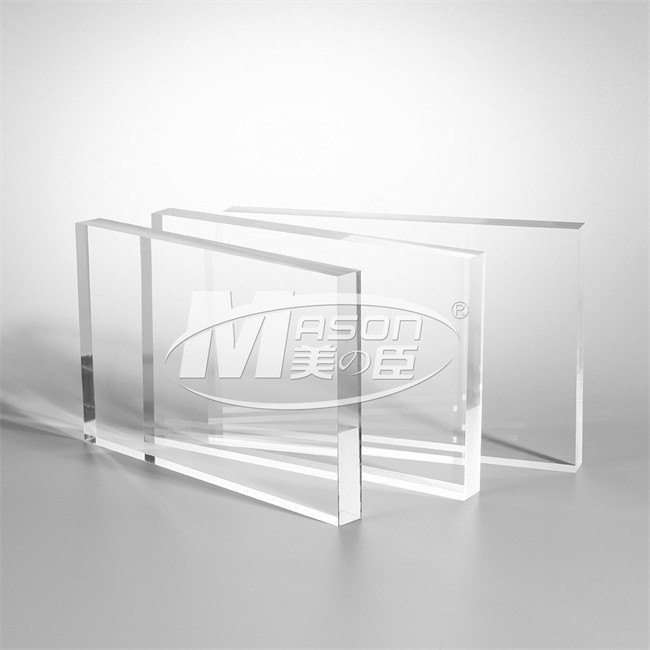

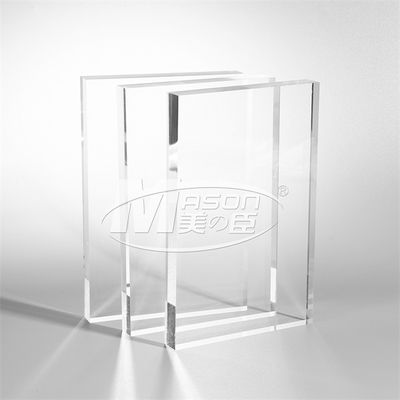

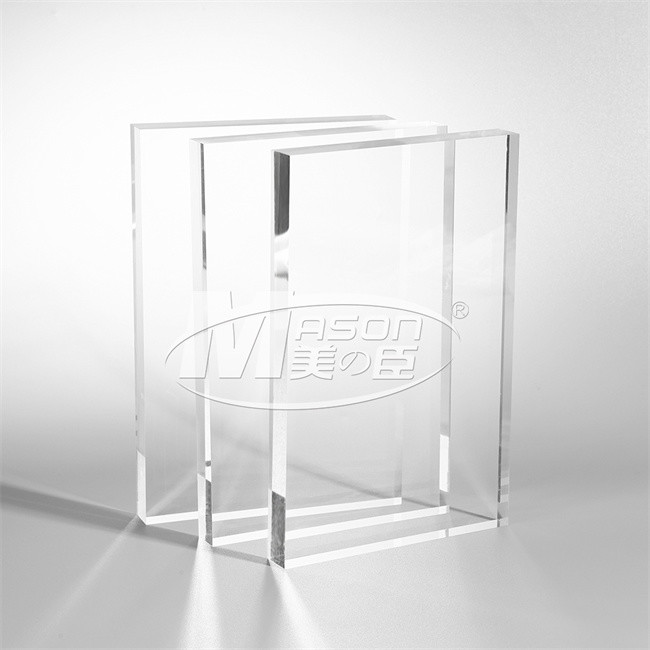

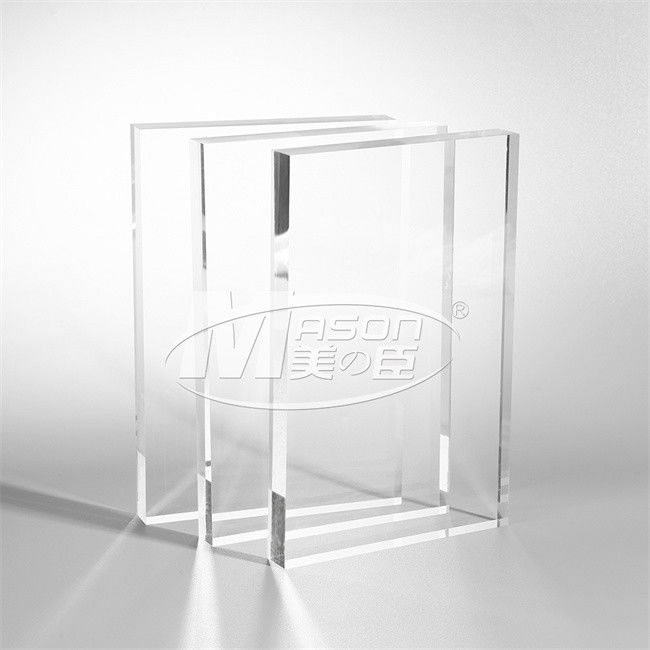

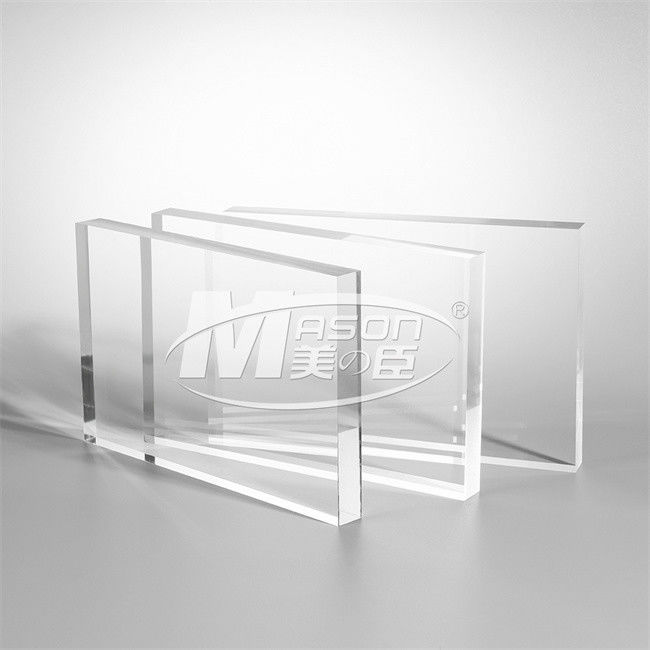

Product Display
Strong flame retardancy and self extinguishing when leaving the fire
APPLICATION
Mason® Flame Retardant Acrylic sheet is ideal for a variety industries and applications including electrical
devices, aircraft components, switchgear covers and other current-carrying items.
