Product Details:
|
|
| Place of Origin: | China |
|---|---|
| Brand Name: | Mason |
| Certification: | SGS CE |
| Model Number: | M-000 |
|
Payment & Shipping Terms:
|
|
| Minimum Order Quantity: | 75 SHEETS |
| Price: | Negotiable |
| Packaging Details: | Max 1500kgs on one pallet |
| Delivery Time: | 7-15DAYS |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 10000KGS PER DAY |
Unbreakable Anti UV Fireproof Flame Retardant
Acrylic Sheet PMMA Panel
Description
MASON® offer low flammability acrylic sheeting solutions.Fire rated acrylic sheet is a flame inhibiting,UV-stable
plastic sheeting and glazing product that is virtually unbreakable.Although stronger than glass,fire rated acrylic
is easily die cut, punched and sheared to meet your fabrication needs, whatever they are. Flame retardant sheet
is produced under rigid quality control specifications ensuring it meets ISO certification guidelines.
FLAME RETARDANT ACRYLIC PARAMETER
| Item | Test Result | Item | Test Result |
| Transmittance% | 91 | Tensile Strain at Break, Mpa | 5 |
| Rockwell Hardness(M) | 97 | Modulus of elasticity in tension, Mpa | 3.03 |
| Vicat Softening Temperature(1.8MPA) | 101 | Rockwell Hardness(R) | 124 |
| Coefficient of Thermal Expansion ℃-1 | 7.0*10-5 | Resistance to crazing in solvent | No crazing |
FLAME RETARDANT ACRYLIC SPECIFICATION
(The specification is 3mm plate, size will decreases with the increase of thickness)
| Code | Size with rubber edge | Size after cut edge |
| Q | 1250*1850mm | 1210*1820mm |
| L0 | 1250*2450mm | 1210*2420mm |
| L1 | 1270*2490mm | 1220*2440mm |
| L2 | 1310*2530mm | 1270*2490mm |
| N | 1550*3050mm | 1510*3020mm |
Strong flame retardancy and self extinguishing when leaving the fire

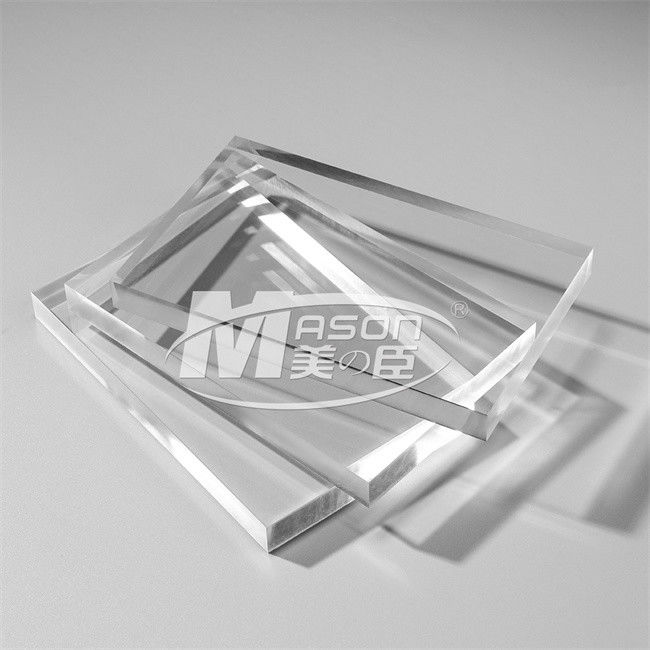

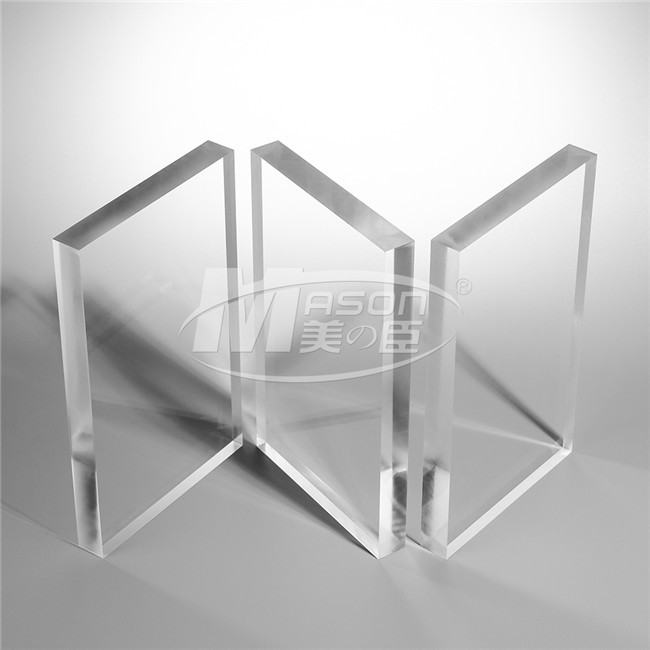

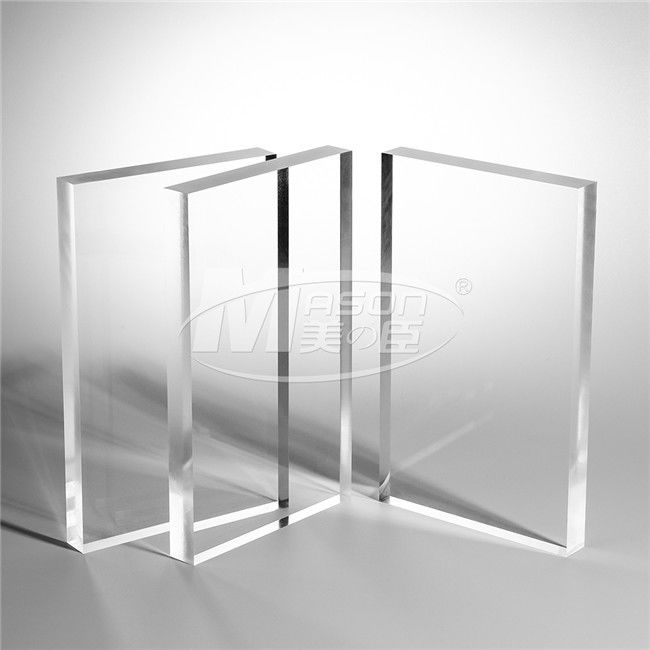

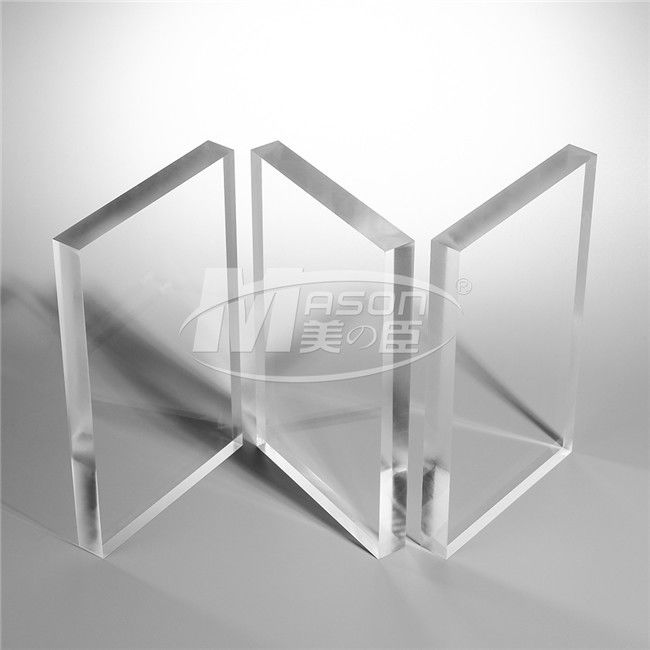

Product Display
APPLICATION
MASON® Flame Retardant Acrylic sheet is ideal for a variety of industries and applications including buildings,
aviation,subway,vehicles,advertising decoration,elevators,electronic appliances and other current-carrying items.
