Product Details:
|
|
| Place of Origin: | China |
|---|---|
| Brand Name: | Mason |
| Certification: | SGS CE |
| Model Number: | M-000 |
|
Payment & Shipping Terms:
|
|
| Minimum Order Quantity: | 50 SHEETS |
| Price: | Negotiable |
| Packaging Details: | Max 1500kgs on one pallet |
| Delivery Time: | 7-15DAYS |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 10000KGS PER DAY |
Mason 8mm 4x8 Ft V0 Level Flame Retardant
Acrylic Sheet
Description
MASON® fire rated acrylic sheet is a flame inhibiting, UV-stable plastic sheeting and glazing product that
is virtually unbreakable.fire rated acrylic is easily to cut,punched and sheared to meet your fabrication needs,
whatever they are. The oxygen index is greater than 30 and the light transmittance is greater than 90%,
meeting the environmental protection requirements.
| Item | Test Result | Item | Test Result |
| Transmittance% | 91 | Tensile Strain at Break, Mpa | 5 |
| Rockwell Hardness(M) | 97 | Modulus of elasticity in tension, Mpa | 3.03 |
| Coefficient of Thermal Expansion ℃-1 | 7.0*10-5 | Resistance to crazing in solvent | No crazing |
| Dimensional Stability(shrinkage) % | 1.9 | Charpy Non-notch Impact Strength KJ/M2 | 21.9(C) |
| Tensile strength, Mpa | 74.7 |
| Code | Size with rubber edge | Size after cut edge |
| Q | 1250*1850mm | 1220*1830mm |
| L0 | 1250*2450mm | 1220*2440mm |
| L1 | 1270*2490mm | 1220*2440mm |
| L2 | 1310*2530mm | 1270*2490mm |
| N | 1550*3050mm | 1510*3020mm |
| M | 2050*3050mm | 2010*3010mm |

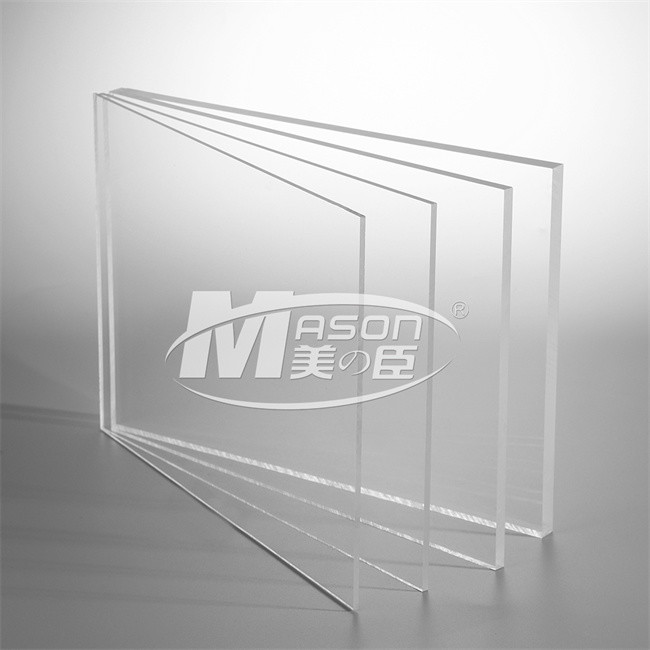

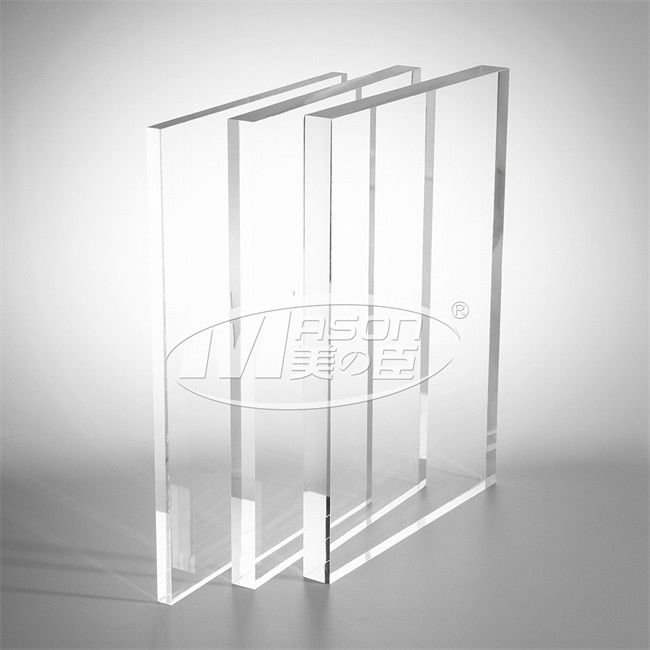

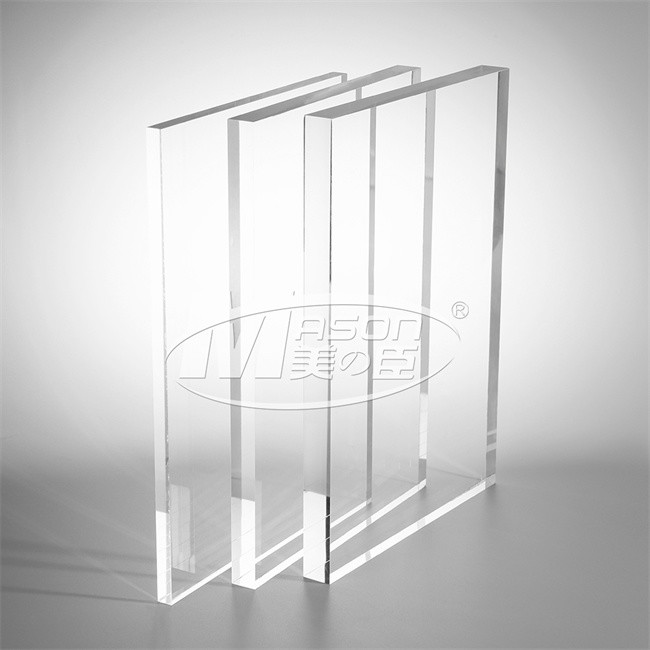

Product Display
100% VIRGIN PMMA
Clear or colors flame Retardant acrylic sheet can be product.
APPLICATION
MASON® Flame Retardant Acrylic sheet is ideal for a variety of industries and applications including electrical
devices, buildings, aircraft components, switchgear covers and other current-carrying items.
