Transparent and color 5mm 4*8 feet V0 Flame
Retardant Acrylic
Description
Fire retardant plastic acrylic sheet is an extremely durable modified plastic perfect for electrical applications.
This type of flame retardant acrylic sheet meets UL 94 V-0.And following feature it with:
Weatherable
Printable
Heat Formability
High Light Transmission
Impeccable Clarity
Impact Resistance
Temperature Resistance
Flame retardant sheeting is used in a number of industries, such as architecture (like shopping centers),
safety glazing (like at a bank) or even for advertising panels
MASON CLEAR CAST ACRYLIC PARAMETER
| Item | Test Result | Item | Test Result |
| Transmittance% | 94 | Tensile Strain at Break, Mpa | 5 |
| Rockwell Hardness(M) | 97 | Modulus of elasticity in tension, Mpa | 3.03 |
| Vicat Softening Temperature(1.8MPA) | 101 | Rockwell Hardness(R) | 124 |
| Coefficient of Thermal Expansion ℃-1 | 7.0*10-5 | Resistance to crazing in solvent | No crazing |
| Dimensional Stability(shrinkage) % | 1.9 | Charpy Non-notch Impact Strength KJ/M2 | 21.9(C) |
| Tensile strength, Mpa | 74.7 |
MASON ACRYLIC SPECIFICATION
(The specification is 3mm plate, size will decreases with the increase of thickness)
| Code | Size with rubber edge | Size after cut edge |
| Q | 1250*1850mm | 1210*1820mm |
| L0 | 1250*2450mm | 1210*2420mm |
| L1 | 1270*2490mm | 1220*2440mm |
| L2 | 1310*2530mm | 1270*2490mm |
| L3 | 1350*2570mm | 1310*2530mm |
| N | 1550*3050mm | 1510*3020mm |
| M | 2050*3050mm | 2010*3010mm(Include Frosted) |

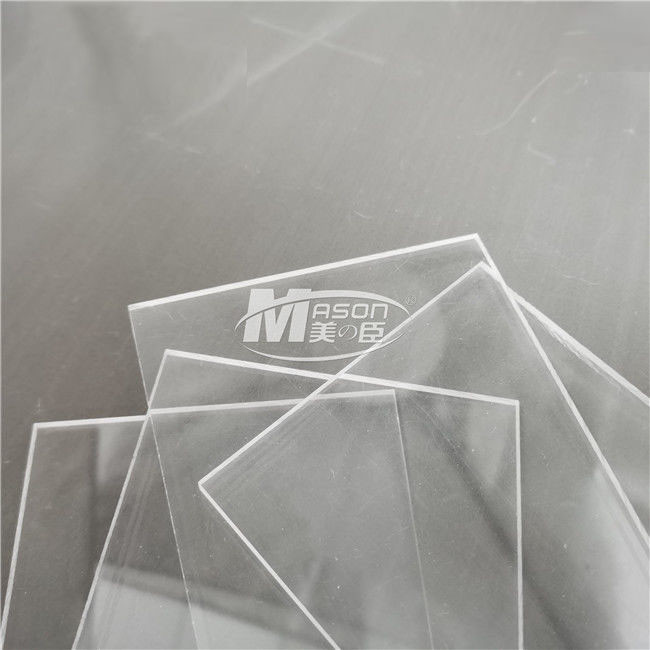

Product Display
100% VIRGIN PMMA
Strong flame retardancy and self extinguishing when leaving the fire
