Product Details:
|
|
| Place of Origin: | China |
|---|---|
| Brand Name: | Mason |
| Certification: | SGS CE |
| Model Number: | M-000 |
|
Payment & Shipping Terms:
|
|
| Minimum Order Quantity: | 90 SHEETS |
| Price: | Negotiable |
| Packaging Details: | Max 1500kgs on one pallet |
| Delivery Time: | 7-15DAYS |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 10000KGS PER DAY |

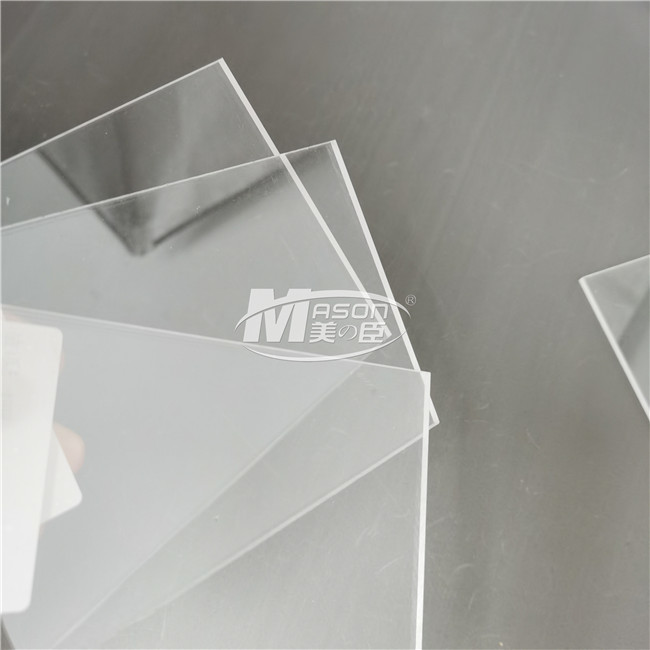

6mm Thickness Anti Scratch Fireproof Clear Flame
Retardant Acrylic Glass Sheet
Description
MASON® Fireproof Acrylic is proud to offer Low Flammability (LF) acrylic sheeting solutions. It is stronger
than ordinary acrylic sheet,retardant acrylic sheet rate reaches ul94-v0 by vertical combustion test.
Application
Flame Retardant Acrylic board is widely use for a variety of industries and applications including electrical
devices, switchgear covers and other current-carrying items.
MASON CLEAR CAST ACRYLIC PARAMETER
|
Item |
Test Result |
Item |
Test Result |
|
Rockwell Hardness(M) |
97 |
Modulus of elasticity in tension, Mpa |
3.03 |
|
Vicat Softening Temperature(1.8MPA) |
101 |
Rockwell Hardness(R) |
123.6 |
|
Coefficient of Thermal Expansion ℃-1 |
7.0*10-5 |
Resistance to crazing in solvent |
No crazing |
|
Dimensional Stability(shrinkage) % |
1.91 |
Charpy Non-notch Impact Strength KJ/M2 |
21.9(C) |
|
Tensile strength, Mpa |
74.7 |
|
|
MASON ACRYLIC SPECIFICATION
(The specification is 3mm plate, size will decreases with the increase of thickness)
|
Code |
Size with rubber edge |
Size after cut edge |
|
Q |
1250*1850mm |
1210*1820mm |
|
L0 |
1250*2450mm |
1210*2420mm |
|
L1 |
1270*2490mm |
1220*2440mm |
|
L2 |
1310*2530mm |
1270*2490mm |
|
L3 |
1350*2570mm |
1310*2530mm |
|
N |
1550*3050mm |
1510*3020mm |
Product Display
Could custom several colors
Strong flame retardancy and self extinguishing when leaving the fire
PACKING DETAILS
