Product Details:
|
|
| Place of Origin: | China |
|---|---|
| Brand Name: | Mason |
| Certification: | SGS CE |
| Model Number: | M-000 |
|
Payment & Shipping Terms:
|
|
| Minimum Order Quantity: | 60 SHEETS |
| Price: | Negotiable |
| Packaging Details: | Max 1500kgs on one pallet |
| Delivery Time: | 7-15DAYS |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 10000KGS PER DAY |
Waterproof Fireproof Flame Retardant Acrylic
Transparent Sheet For Kitchen Cabinet Use
“MASON” flame-retardant acrylic sheet
As the acrylic sheet non-combustible in flame or with slow burning speed and extinguishing automatically
when leaving the flame and as a new environmentally friendly material,the flame-retardant acrylic integrates
the advantages of acrylic and polycarbonate(PC)and its strength and impact toughness are superior to acrylic.
“MASON” flame-retardant acrylic quality standard is executed according to Q/TDQU01-2005 standard.
FLAME RETARDANT ACRYLIC PARAMETER
| Item | Test Result | Item | Test Result |
| Transmittance% | 90 | Tensile Strain at Break, Mpa | 5 |
| Rockwell Hardness(M) | 97 | Modulus of elasticity in tension, Mpa | 3.03 |
| Vicat Softening Temperature(1.8MPA) | 101 | Rockwell Hardness(R) | 124 |
| Coefficient of Thermal Expansion ℃-1 | 7.0*10-5 | Resistance to crazing in solvent | No crazing |
| Tensile strength, Mpa | 74.7 |
FLAME RETARDANT ACRYLIC SPECIFICATION
(The specification is 3mm plate, size will decreases with the increase of thickness)
| Code | Size with rubber edge | Size after cut edge |
| Q | 1250*1850mm | 1210*1820mm |
| L0 | 1250*2450mm | 1210*2420mm |
| L1 | 1270*2490mm | 1220*2440mm |
| L2 | 1310*2530mm | 1270*2490mm |
| N | 1550*3050mm | 1510*3020mm |
“MASON” flame-retardant plate reaches UL94-V0 level through the test by vertical burning method.

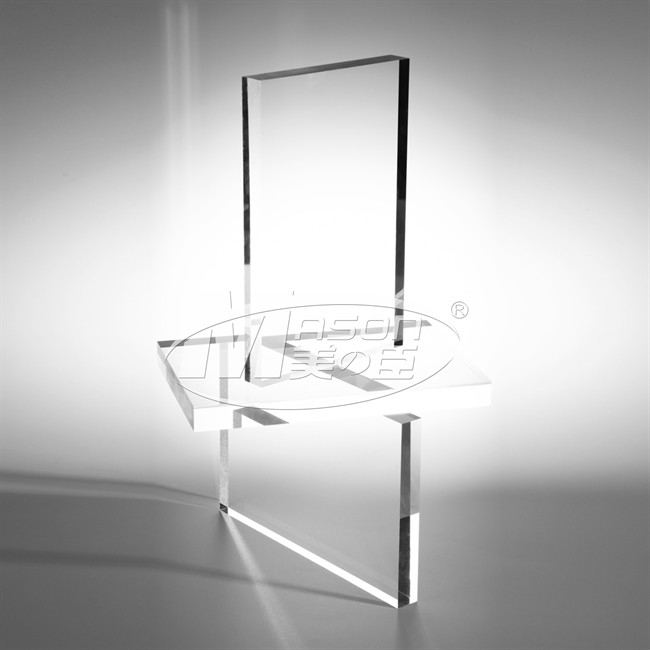

Product Display
100% VIRGIN PMMA
APPLICATION
Widely used in the buildings, aviation, subways, vehicles, advertisement decoration, elevators, electronics
and other industries with high requirements for fire protection level.
