Product Details:
|
|
| Place of Origin: | China |
|---|---|
| Brand Name: | Mason |
| Certification: | SGS CE |
| Model Number: | M-000 |
|
Payment & Shipping Terms:
|
|
| Minimum Order Quantity: | 50 SHEETS |
| Price: | Negotiable |
| Packaging Details: | Max 1500kgs on one pallet |
| Delivery Time: | 7-15DAYS |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 10000KGS PER DAY |
Mason Clear 5mm 122*244cm Solid Pc Sheet Uv Stabilized Polycarbonate Panel
PC Sheet Advantage:
1. Light Transmission
The light transimission of the sheet is quite good which is up to 89%.
2. Weather Resistance
The weather resistance treatment of anti-UV on the surface of the sheet precents the resin from turning yellow
by causing Ultraviolet ray. The UV agent has chemical bond to change Ultraviolet ray into visable light, which
has a stable effect on the photsynthesis of plants.
3. Temperature Property
Throught the national GV8625-88 test, its fire retardant is identified to be Grade 1, no fire drops nor toxic gas.
In the temperature from -40C to 120C, the product will not deform.
4. Light Weight
It is light weight,easy to handle and drill,convenient for constrsction and procession,when cutting for installatioin,
it is not easy to be broken.
| Item | Unit | Index | Test Method |
| Proportion | g/cm | 1.2 | D-792 |
| Impact strength(Izod,Gap) | J/M | 907 | D-256 |
| Tensile yield strength | Mpa | 69 | D-638 |
| Tensile breaking strength | Mpa | 71 | D-638 |
| Yield strength rate | % | 6.5 | D-638 |
| Breaking strength rate | % | 120 | D-638 |
| Compressive strength | Mpa | 86 | D-695 |
| Elastic modulus | Mpa | 2400 | D-638 |
| Coefficient of thermal expansion | W/m. | 6.7x10 | D-696 |
| Guidance coefficient | W/m.K | 0.2 | C-177 |
| Thickness(mm) | 2.0 | 3.0 | 6.0 | 8.0 | 10.0 |
| Transparency | 89 | 88 | 83 | 82 | 80 |

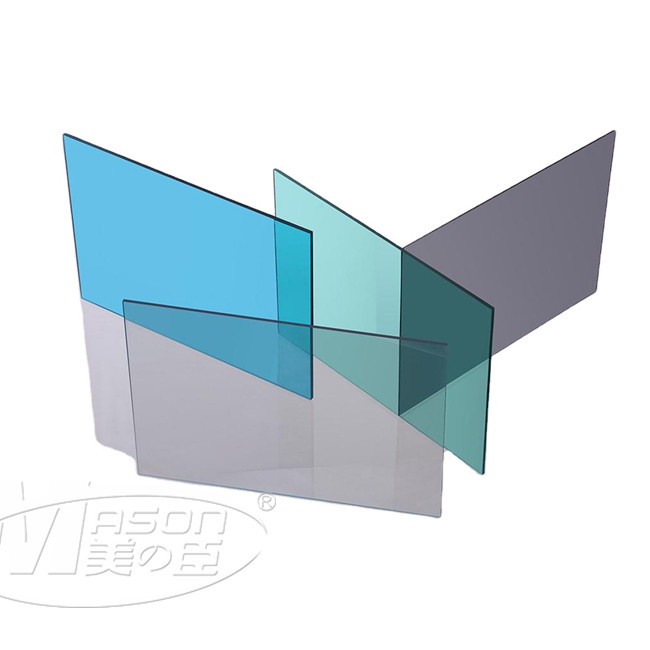

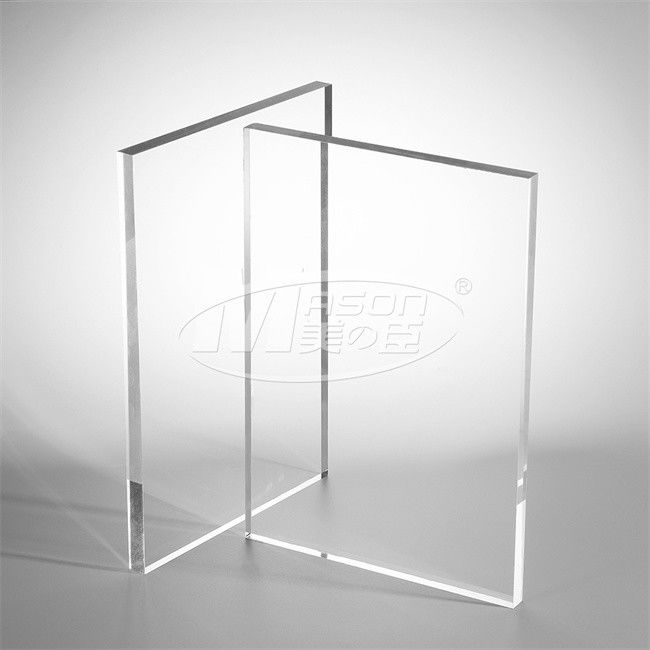

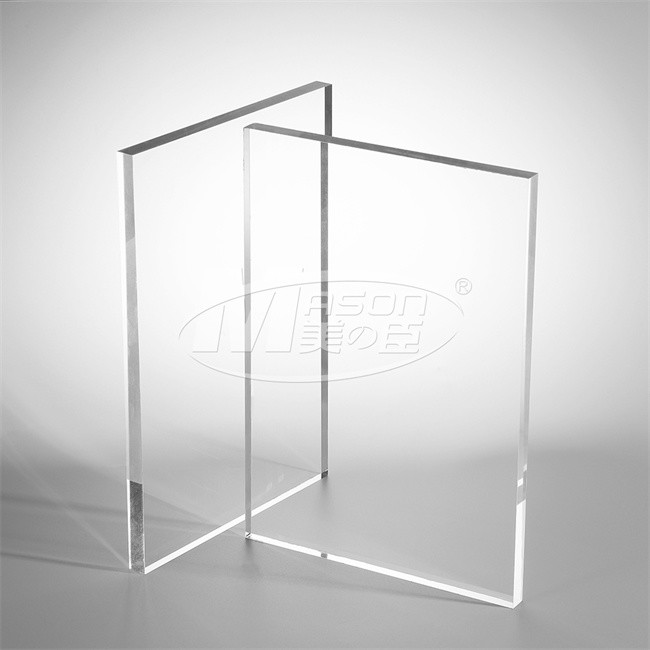

Product Display
Excellent thickness accuracy.
The thickness tolerance is much higher than the national standard.
