Product Details:
|
|
| Place of Origin: | China |
|---|---|
| Brand Name: | Mason |
| Certification: | SGS CE |
| Model Number: | M-000 |
|
Payment & Shipping Terms:
|
|
| Minimum Order Quantity: | 150 SHEETS |
| Price: | Negotiable |
| Packaging Details: | Max 1500kgs on one pallet |
| Delivery Time: | 7-15DAYS |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 10000KGS PER DAY |

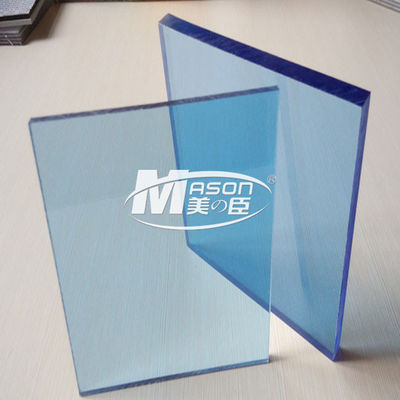

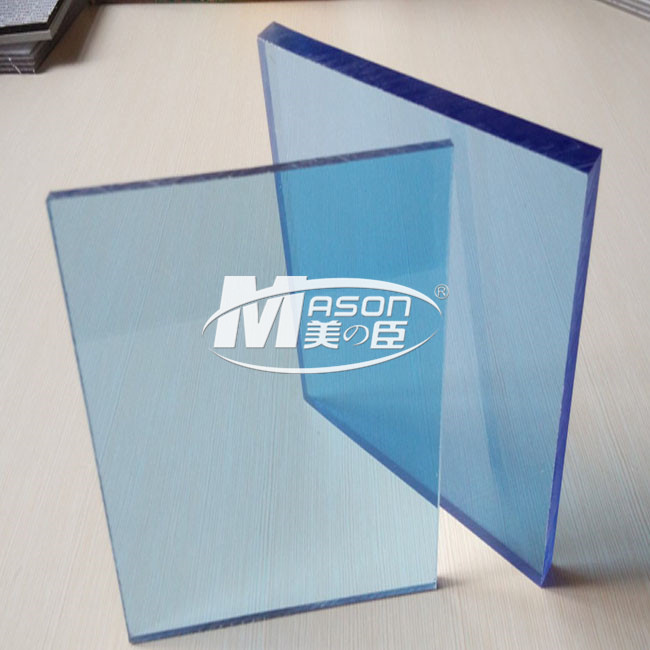

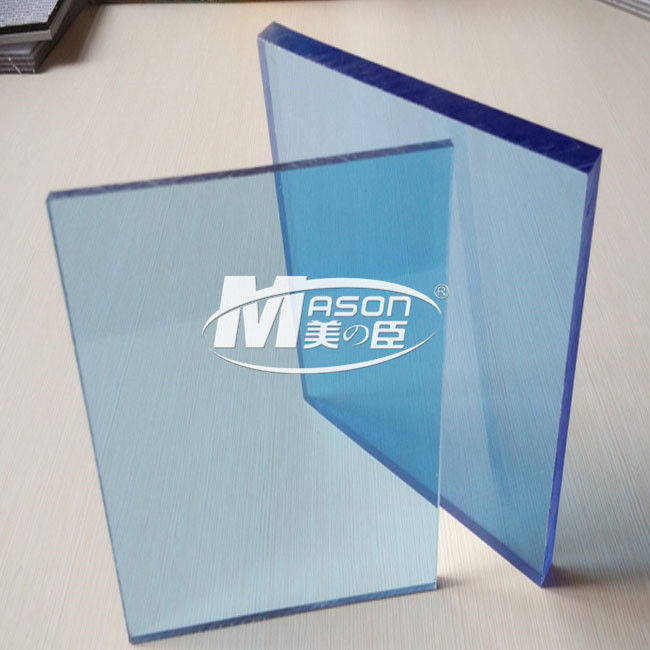

China Manufacturer 1220x2440mm Clear Polycarbonate
Sheet Solid Pc Plastic Board
Specification
PC solid board also known as polycarbonate solid sheet, is processed from polycarbonate (PC), a high
performance engineering plastic.PC sheets offer an extremely high impact resistance (upto 250 times that
of glass and 30 times that of acrylic) making it virtually unbreakable. These are rated at an impact energy
of >200Nm and qualify for the highest performance rating for security glazing as per various International
standards.
Application
Signage and Led Light Covers,light box advertisement,telephone booth, exhibition,sound insulation screen,
agricultural greenhouse,Transportation Industry, etc.
|
Item |
Unit |
Index |
Test Method |
|
Proportion |
g/cm |
1.2 |
D-792 |
|
Impact strength(Izod,Gap) |
J/M |
907 |
D-256 |
|
Yield strength rate |
% |
6.5 |
D-638 |
|
Breaking strength rate |
% |
120 |
D-638 |
|
Compressive strength |
Mpa |
86 |
D-695 |
|
Elastic modulus |
Mpa |
2400 |
D-638 |
|
Coefficient of thermal expansion |
W/m. |
6.7x10 |
D-696 |
|
Guidance coefficient |
W/m.K |
0.2 |
C-177 |
|
Hot deformation temperature (load 1.81Mpa) |
|
135 |
D-648 |
|
Thickness(mm) |
2.0 |
3.0 |
6.0 |
8.0 |
10.0 |
|
Transparency |
89 |
88 |
83 |
82 |
80 |
Product Display
Excellent light transmission; High Heat-resistant
Application
FAQS
How long is the delivery time?
Delivery time is very fast, only need about 10 days.
How about the MOQ?
NO MOQ. Discount offered for more quantities.
How about the after-sale service?
If there has any quality problems when you receive our products, show us photos and we will afford the lost from next order.
