Product Details:
|
|
| Place of Origin: | China |
|---|---|
| Brand Name: | Mason |
| Certification: | SGS CE |
| Model Number: | M-000 |
|
Payment & Shipping Terms:
|
|
| Minimum Order Quantity: | 60 SHEETS |
| Price: | Negotiable |
| Packaging Details: | Max 1500kgs on one pallet |
| Delivery Time: | 7-15DAYS |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 10000KGS PER DAY |

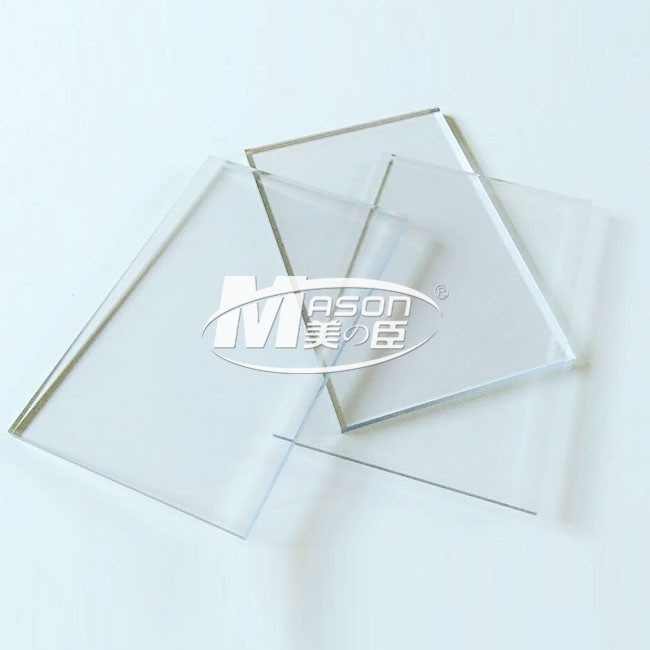

5mm 1220*2440mm Clear PC Polycarbonate Sheets
Description
Polycarbonate (PC sheet) is far more impact resistant than acrylic but easier to scratch-polycarbonate is
virtually unbreakable. Polycarbonate sheet has a UK Class 1 fire rating whereas acrylic has a UK Class
3 fire rating.polycarbonate can be cut to virtually any shape or size using specialised CNC machinery
Applications
Construction
Automotive and aircraft components
Security components
Signage
Vending machines
Street furniture
Machine guards
|
Item |
Unit |
Index |
Test Method |
|
Proportion |
g/cm |
1.2 |
D-792 |
|
Impact strength(Izod,Gap) |
J/M |
907 |
D-256 |
|
Yield strength rate |
% |
6.5 |
D-638 |
|
Breaking strength rate |
% |
120 |
D-638 |
|
Compressive strength |
Mpa |
86 |
D-695 |
|
Elastic modulus |
Mpa |
2400 |
D-638 |
|
Coefficient of thermal expansion |
W/m. |
6.7x10 |
D-696 |
|
Guidance coefficient |
W/m.K |
0.2 |
C-177 |
|
Hot deformation temperature (load 1.81Mpa) |
|
135 |
D-648 |
|
Thickness(mm) |
2.0 |
3.0 |
6.0 |
8.0 |
10.0 |
|
Transparency |
89 |
88 |
83 |
82 |
80 |
Product Display
Polycarbonate sheet is fully recyclable. The material is sorted, shredded and washed before being turned
into a granulate ready for manufacturing.
Application
