Product Details:
|
|
| Place of Origin: | China |
|---|---|
| Brand Name: | Mason |
| Certification: | SGS CE |
| Model Number: | M-000 |
|
Payment & Shipping Terms:
|
|
| Minimum Order Quantity: | 50 SHEETS |
| Price: | Negotiable |
| Packaging Details: | Max 1500kgs on one pallet |
| Delivery Time: | 7-15DAYS |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 10000KGS PER DAY |

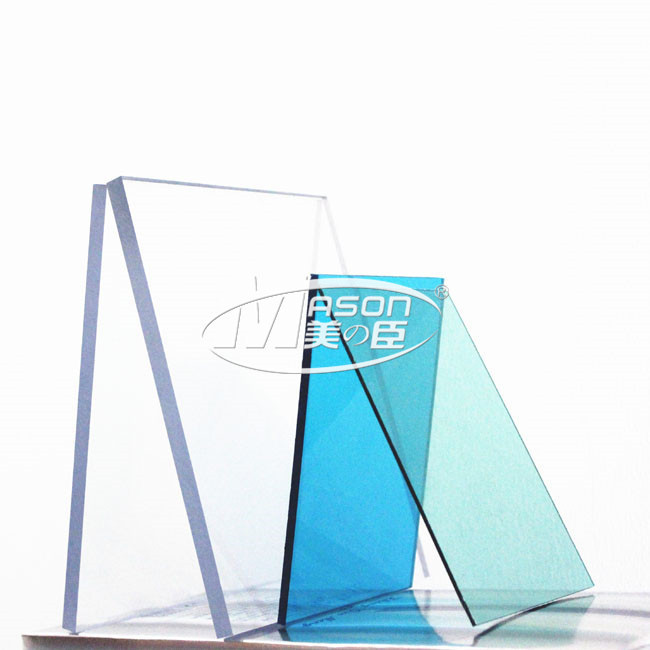

Solid Transparent 1.8-10mm Polycarbonate PC
Resistant Sheet For Building Material
Specification
Mason PC solid board is processed from polycarbonate,a high-performance engineering plastic.The impact
strength is 250-300 times that of ordinary glass, 30 times that of acrylic plate with the same thickness, and
2-20 times that of tempered glass; the light transmittance of endurance board can reach 89%,which can be
beautiful with glass.
Application
Light box advertisement, telephone booth, exhibition, sound insulation screen of Expressway and elevated
road, greenhouse, ceiling, etc.
|
Item |
Unit |
Index |
Test Method |
|
Proportion |
g/cm |
1.2 |
D-792 |
|
Impact strength(Izod,Gap) |
J/M |
907 |
D-256 |
|
Tensile yield strength |
Mpa |
69 |
D-638 |
|
Yield strength rate |
% |
6.5 |
D-638 |
|
Breaking strength rate |
% |
120 |
D-638 |
|
Elastic modulus |
Mpa |
2400 |
D-638 |
|
Coefficient of thermal expansion |
W/m. |
6.7x10 |
D-696 |
|
Guidance coefficient |
W/m.K |
0.2 |
C-177 |
|
Thickness(mm) |
2.0 |
3.0 |
6.0 |
8.0 |
10.0 |
|
Transparency |
89 |
88 |
83 |
82 |
80 |
Product Display
Flame retardancy:
The national standard gb50222-95 confirms that the endurance board is class I flame retardant, i.e. Class
B1.The ignition point of PC board is 580 ℃,and it will self extinguish after leaving the fire.
Bendability
it can be installed into arch, semi-circular roof and window by cold bending. The minimum bending radius
is 175 times of the plate thickness, and it can also be hot bent.
Application
FAQS
Q:When can I get the quotation?
A: We usually send quote within immediately,weekend will reply you within 12 hours after we get your inquiry.
Q: What is the payment term?
A: T/T 30% deposit amount,70% balance payment before shipment.
Q: How about the after-sale service?
A: If there has any quality problems when you receive our products, show us photos and we will afford the lost
from next order.
