Product Details:
|
|
| Place of Origin: | China |
|---|---|
| Brand Name: | Mason |
| Certification: | SGS CE |
| Model Number: | M-000 |
|
Payment & Shipping Terms:
|
|
| Minimum Order Quantity: | 50 SHEETS |
| Price: | Negotiable |
| Packaging Details: | Max 1500kgs on one pallet |
| Delivery Time: | 7-15DAYS |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 10000KGS PER DAY |

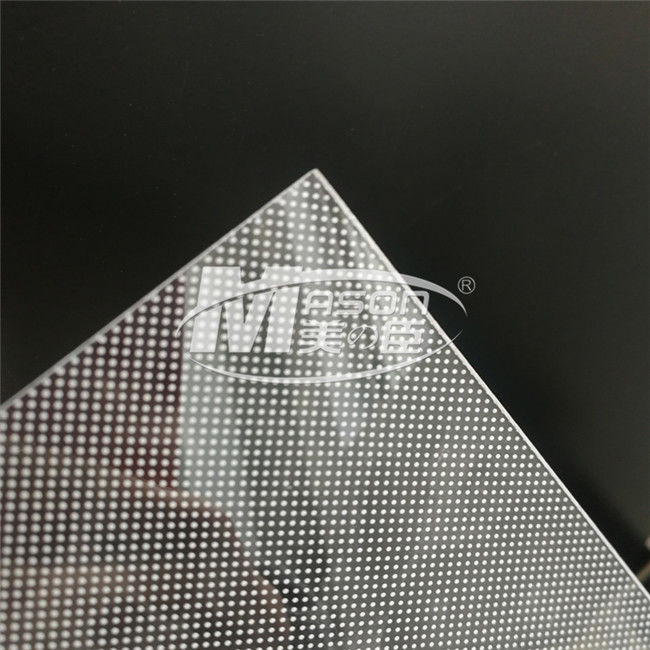

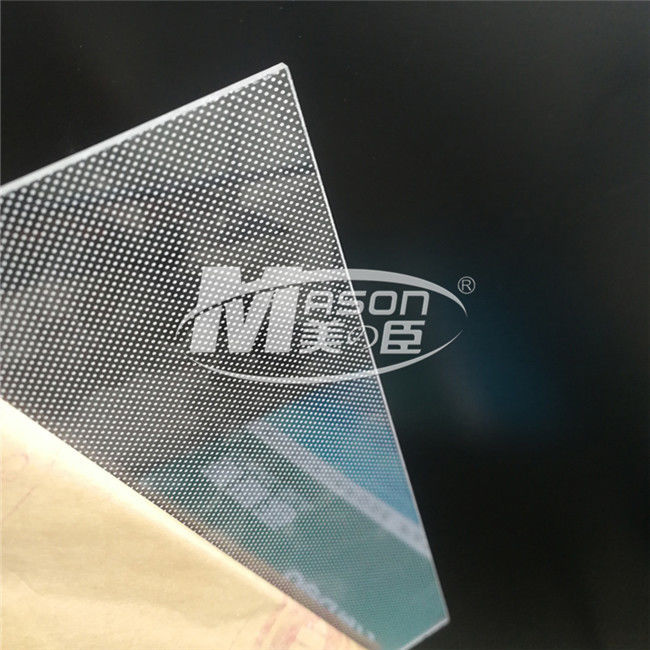

Laser Dotting Engraving Acrylic LGP Light Guide
Plate For Light Box
Description
Light guide plate is a laser dotting acrylic panel made from pure PMMA virgin sheet.It distributes the light
coming from the light source evenly over the whole upper face to acrylic panel. It is a key component to
maximize the uniformity of light, to make backlight slim and to reorient the lines or dot light source such as
decoration lamp or LED to the plate light source.These sheets are most suitable because of the absolute
flat surface with zero thickness variation. This helps in achieving the best results possible.
Used for
1. LED Light Panels
2. LED TV Screens, Computer Screens, Cell-Phone Screens
3. Clip-Ons/Light Boxes used for advertising purposes
MASON LDP SPECIFICATION
(The specification is 3mm plate, size will decreases with the increase of thickness)
| Code | Size with rubber edge | Size after cut edge |
| Q | 1250*1850mm | 1210*1820mm |
| L0 | 1250*2450mm | 1210*2420mm |
| L1 | 1270*2490mm | 1220*2440mm |
| L2 | 1310*2530mm | 1270*2490mm |
| L3 | 1350*2570mm | 1310*2530mm |
| N | 1550*3050mm | 1510*3020mm |
Product Display
100% VIRGIN PMMA
We provide LGP using the Mitsubishi Shinkolite Premium Acrylic Sheets.
Relative to the ordinary transparent plates,the light guide plate has more excellent color displaying efficiency.
APPLICATION
Mainly used in ultra-thin light boxes, LCD backlight, flat-type decorative lighting and luminous signboards, etc.
