Product Details:
|
|
| Place of Origin: | China |
|---|---|
| Brand Name: | Mason |
| Certification: | SGS CE |
| Model Number: | M-000 |
|
Payment & Shipping Terms:
|
|
| Minimum Order Quantity: | 50 SHEETS |
| Price: | Negotiable |
| Packaging Details: | Max 1500kgs on one pallet |
| Delivery Time: | 7-15DAYS |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 10000KGS PER DAY |

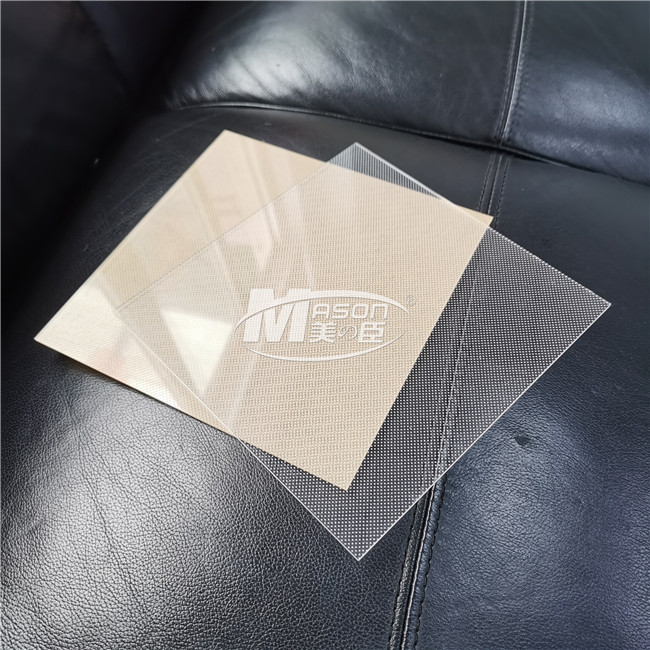

1220*2440mm 4mm Thickness Acrylic Light Guide
Panel LGP For Lighting
Description
Light Guide Plate (LGP) is a transparent acrylic panel made from pure PMMA virgin sheet. It distributes the
light coming from the light source evenly over the whole upper face to acrylic panel. It is a key component to
maximize the uniformity of light, to make backlight slim and to reorient the lines or dot light source such as
decoration lamp or LED to the plate light source.These sheets are most suitable because of the absolute flat
surface with zero thickness variation. This helps in achieving the best results possible.
Used for
1. LED Light Panels
2. LED TV Screens, Computer Screens, Cell-Phone Screens
3. Clip-Ons/Light Boxes used for advertising purposes
MASON LDP ACRYLIC SPECIFICATION
(The specification is 3mm plate, size will decreases with the increase of thickness)
| Code | Size with rubber edge | Size after cut edge |
| Q | 1250*1850mm | 1210*1820mm |
| L0 | 1250*2450mm | 1210*2420mm |
| L1 | 1270*2490mm | 1220*2440mm |
| L2 | 1310*2530mm | 1270*2490mm |
| L3 | 1350*2570mm | 1310*2530mm |
| N | 1550*3050mm | 1510*3020mm |
Product Display
100% VIRGIN PMMA
We provide LGP using the Mitsubishi Shinkolite Premium Acrylic Sheets.
APPLICATION
It can work as led lighted shelf as well as backlit onyx stone backlit, fabricate material backlit, stained glass
backlit, shop & retail furniture light display, ATM & Vending machine advertising illumination and LED light
box, etc.
FAQS
Q1: Are you a manufacturer?
Yes. We are factory manufacturing cast acrylic sheet, we have 6 acrylic production line, and acrylic annual
output 3,6000 tons to all over the world.
Q2:Can you give me a sample order?
Absolutly,we accept sample order.
Q3: Can I get OEM customized products for special application?
Sure, we provide OEM design and produce per customers' requirement.
