Product Details:
|
|
| Place of Origin: | China |
|---|---|
| Brand Name: | Mason |
| Certification: | SGS CE |
| Model Number: | M-000 |
|
Payment & Shipping Terms:
|
|
| Minimum Order Quantity: | 180 SHEETS |
| Price: | Negotiable |
| Packaging Details: | Max 1500kgs on one pallet |
| Delivery Time: | 9-15DAYS |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 10000KGS PER DAY |

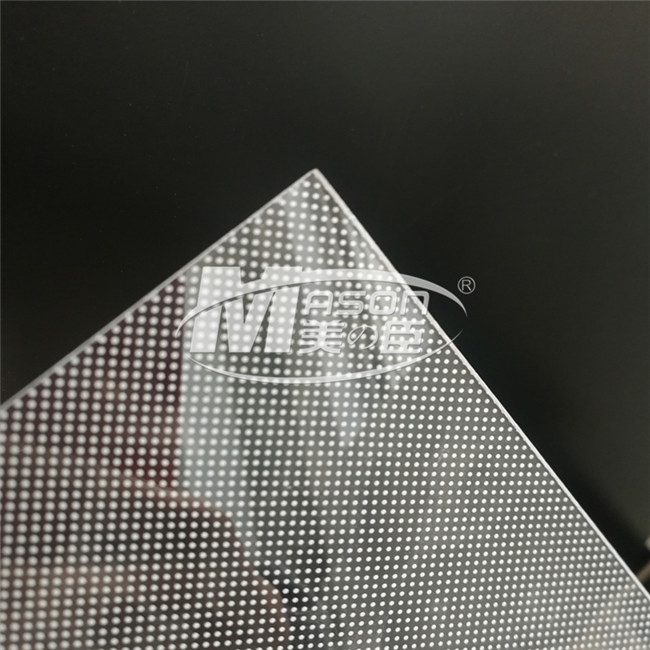

Acrylic LGP Light Guide Plate For LED Uniform
Light Guide Light Panel
Description
Light Guide Plate is an acrylic panel typically made from pure PMMA resin. PMMA is extremely transparent,
highly weather resistant, and lasts longer than 30 years on average. On the bottom of the panel a matrix of
lines can be etched, called V-Cutting, dots can be printed, a combination of both, or particulates are added
into the panel itself. The purpose of all methods is to direct light out the front.
Applications
Retail Design
Signage
Menu Board
Fixture & Display
Exhibition
Interior Décor
MASON ACRYLIC SPECIFICATION
(The specification is 3mm plate, size will decreases with the increase of thickness)
| Code | Size with rubber edge | Size after cut edge |
| Q | 1250*1850mm | 1210*1820mm |
| L0 | 1250*2450mm | 1210*2420mm |
| L1 | 1270*2490mm | 1220*2440mm |
| L2 | 1310*2530mm | 1270*2490mm |
| L3 | 1350*2570mm | 1310*2530mm |
| N | 1550*3050mm | 1510*3020mm |
Product Display
100% VIRGIN PMMA
The led light diffuser panel on each led window display is made with optical grade PMMA sheet, it uses a
high-tech and high reflectivity(without light absorption)material to laser-engage the upper light guide point
on the bottom surface of the optical grade acrylic sheet of real estate window signs.
Laser engraving light guide plate: the production process is complicated, the cost is high, and the service
life is long, about 10 years.
APPLICATION
