Product Details:
|
|
| Place of Origin: | China |
|---|---|
| Brand Name: | Mason |
| Certification: | SGS CE |
| Model Number: | M-000 |
|
Payment & Shipping Terms:
|
|
| Minimum Order Quantity: | 120SHEETS |
| Price: | Negotiable |
| Packaging Details: | about 1590kgs on one wood pallet |
| Delivery Time: | 10-12DAYS |
| Payment Terms: | T/T, Western Union, L/C |
| Supply Ability: | 10000KGS PER DAY |

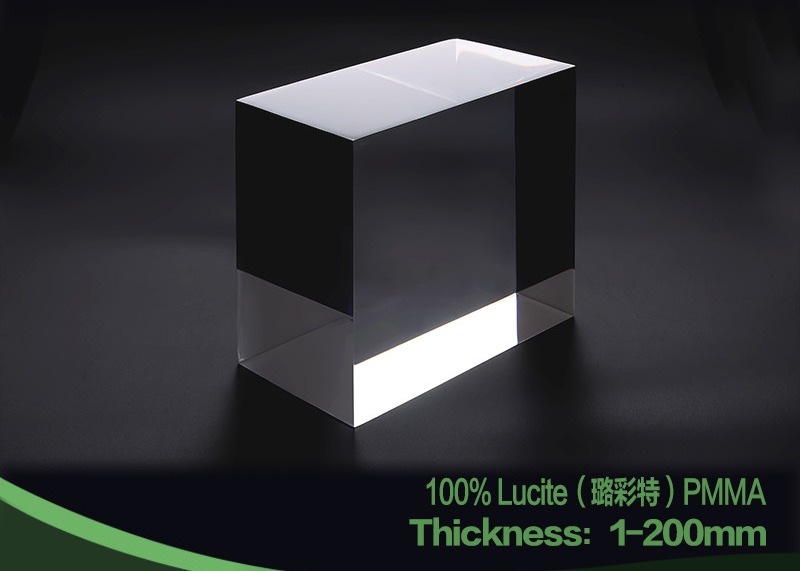

5mm High Glossy Thick Acrylic Panels Plexiglass Plates 1220*2440mm
Description
Clear cast acrylic has an exceptionally high level of light transmission up tp 93.4% of all visible light through
the material creating an unparalleled crystal clear finish.Not even glass can achieve this level optical clarity.
Because of clear cast acrylic sheet is an excellent alternative to glass for glazing purposes.
MASON CLEAR CAST ACRYLIC PARAMETER
| Item | Test Result | Item | Test Result |
| Transmittance% | 93.5 | Tensile Strain at Break, Mpa | 5 |
| Rockwell Hardness(M) | 97.3 | Modulus of elasticity in tension, Mpa | 3.03 |
| Vicat Softening Temperature(1.8MPA) | 101 | Rockwell Hardness(R) | 124.3 |
| Coefficient of Thermal Expansion ℃-1 | 7.0*10-5 | Resistance to crazing in solvent | No crazing |
| Dimensional Stability(shrinkage) % | 1.9 | Charpy Non-notch Impact Strength KJ/M2 | 21.9(C) |
| Tensile strength, Mpa | 74.7 |
(The specification is 3mm plate, size will decreases with the increase of thickness)
|
Code |
Size with rubber edge |
Size after cut edge |
|
Q |
1250*1850mm |
1220*1830mm |
|
L0 |
1250*2450mm |
1210*2420mm |
|
L1 |
1270*2490mm |
1220*2440mm |
|
L2 |
1310*2530mm |
1270*2490mm |
|
L3 |
1350*2570mm |
1310*2530mm |
|
N |
1550*3050mm |
1510*3020mm |
|
M |
2050*3050mm |
2010*3010mm |
Product Display
FOCUS ON ACRYLIC ONE STOP SOLUTION
100% VIRGIN PMMA
QUALITY FIRST, DO A GOOD JOB IN EVERY PROCESS, IS OUR ETERNAL COMMITMENT TO CUSTOMERS.
PRODUCED BY CASTING TECHNOLOGY
PACKING DETAILS
FAQS
Who are you?
We are direct manufacturer for more than 10 years’ experiences, We have 6 professional Whole automated
production lines. Year Output more than 36000tons
Could I get samples before place an order?
Sure, We always have many kinds of thickness samples in stock, you can get them free for charge but the
with express service expense at customer's cost.
How about the MOQ?
Accoring to the exact size that you need then we can calculate.
