Product Details:
|
|
Place of Origin: | China |
---|---|
Brand Name: | Mason |
Certification: | SGS CE |
Model Number: | M-000 |
Payment & Shipping Terms:
|
|
Minimum Order Quantity: | 30 sheets |
Price: | Negotiable |
Packaging Details: | 1700kgs on one pallet |
Delivery Time: | 10-15DAYS |
Payment Terms: | T/T, Western Union, Western Union |
Supply Ability: | 150 sheets PER DAY |

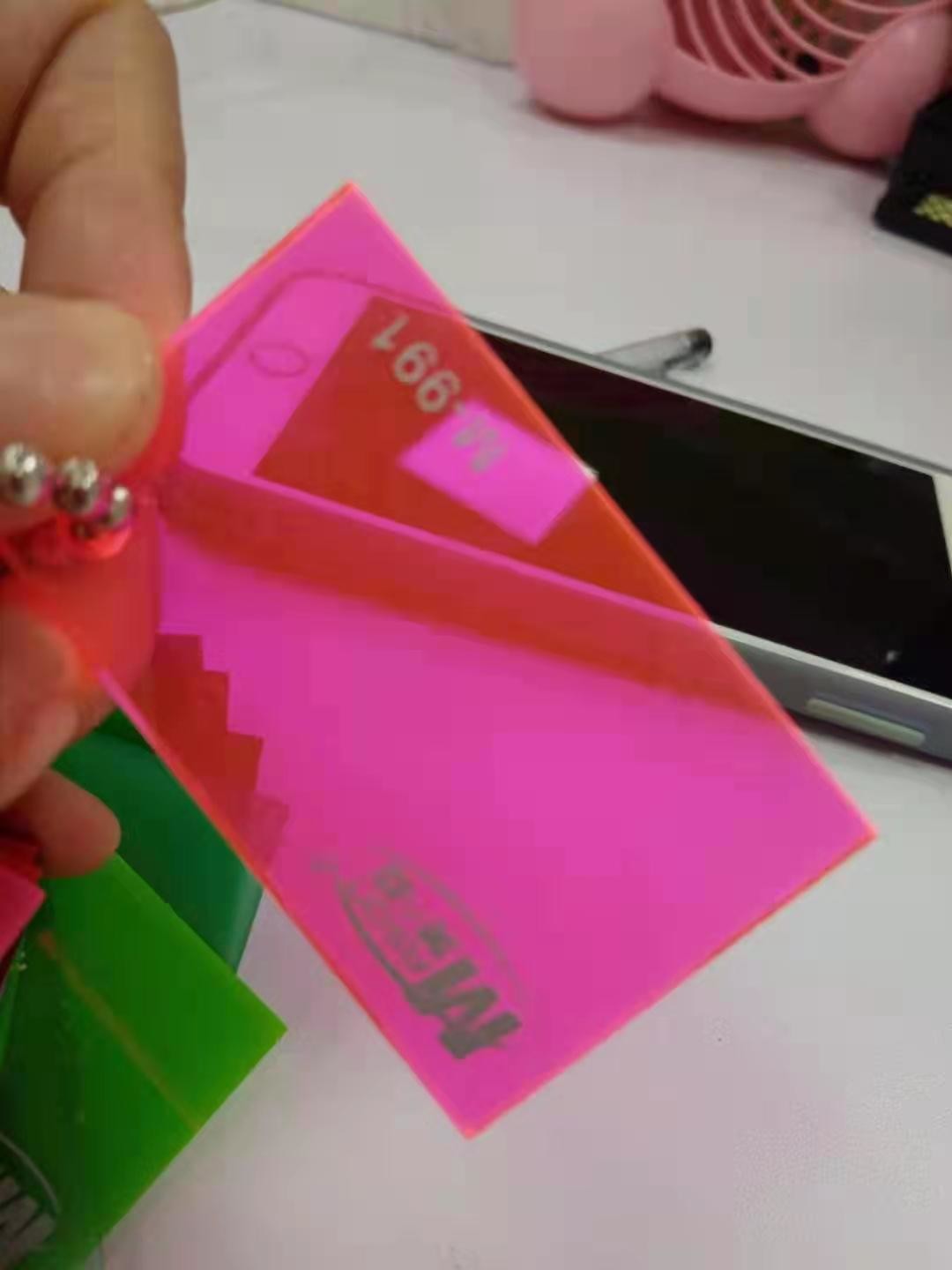

Color 3mm 5mm Hot Sale Acrylic Plate pink color Acrylic Sheet
Specification
Cast acrylic is manufactured by a process whereby MMA (Methyl Methacrylate Monomer) liquid is pumped
into a mould made from two sheets of glass. The mould/monomer is then submerged in warm water and
the process of polymerization takes place. The result is a sheet of rigid PMMA (polymethyl methacrylate)
or what is generically called Acrylic.
Applications
Widely used in building and construction , commercial and structural glazing , displays and point of sale,
exhibit,trade show and convention displays,machine shops,plastic and metal fabrication,recreation,signage.
MASON CLEAR CAST ACRYLICPARAMETER
Item | Test Result | Item | Test Result |
Transmittance% | 94 | Tensile Strain at Break, Mpa | 5 |
Rockwell Hardness(M) | 97 | Modulus of elasticity in tension, Mpa | 3.03 |
Vicat Softening Temperature(1.8MPA) | 101 | Rockwell Hardness(R) | 124 |
Coefficient of Thermal Expansion ℃-1 | 7.0*10-5 | Resistance to crazing in solvent | No crazing |
Dimensional Stability(shrinkage) % | 1.9 | Charpy Non-notch Impact Strength KJ/M2 | 21.9(C) |
Tensile strength, Mpa | 74.7 |
Code | Size with rubber edge | Size after cut edge |
Q | 1250*1850mm | 1210*1820mm |
L0 | 1250*2450mm(Include Frosted) | 1210*2420mm(Include Frosted) |
L1 | 1270*2490mm | 1220*2440mm |
L2 | 1310*2530mm | 1270*2490mm |
L3 | 1350*2570mm | 1310*2530mm |
Y | 1650*2600mm | 1610*2660mm |
N | 1550*3050mm | 1510*3020mm |
M | 2050*3050mm(Include Frosted) | 2010*3010mm(Include Frosted) |
Product Display
FOCUS ON ACRYLIC ONE STOP SOLUTION
Will not deteriorate after many years of service because of the inherent stability of acrylic resins
100% Virgin Lucite MMA
Service:
We offer custom acrylic facrication for a variety of acrylic sheet materials and shapes.We specialize in cut
to size acrylic sheets and are always happy to work with you to meet your spacific requirements. We serve
a wide-range of industries including CNC and laser cutting,cut to size and Polishing acrylic,acylic gluing
and bonding,thermoforming acrylic,custom acrylic display,acrylic boxes,sneeze guards and so much more.
Cut-to-Size:
Our team at MASON factory have a wide-selection of plastic including acrylic, polycarbonate, etc that we
can cut to your exact size specifications.
PRODUCED BY CASTING TECHNOLOGY
MASON PMMA sheet is produced by the famous brand MMA and matching all kinds of latest imported
assembly line production equipment as well as Pilkington glass molds imported from British.
Acrylic perspex sheets thickness tolerances are +/- 10%
0.100" (2.5mm) and 10mm thicker acrylic sheet with variations throughout the sheet.
PACKING DETAILS
Acrylic plexiglass plastic sheets suface protection with PE film or craft paper masking.
Clear plexiglass sheet only half the weight of glass and 43% the weight of aluminum.
