Product Details:
|
|
| Place of Origin: | China |
|---|---|
| Brand Name: | Mason |
| Certification: | SGS CE |
| Model Number: | M-000 |
|
Payment & Shipping Terms:
|
|
| Minimum Order Quantity: | 45 clear sheets |
| Price: | Negotiable |
| Packaging Details: | 1650kgs on one pallet |
| Delivery Time: | 10-15DAYS |
| Payment Terms: | T/T, Western Union, Western Union |
| Supply Ability: | 150 sheets PER DAY |

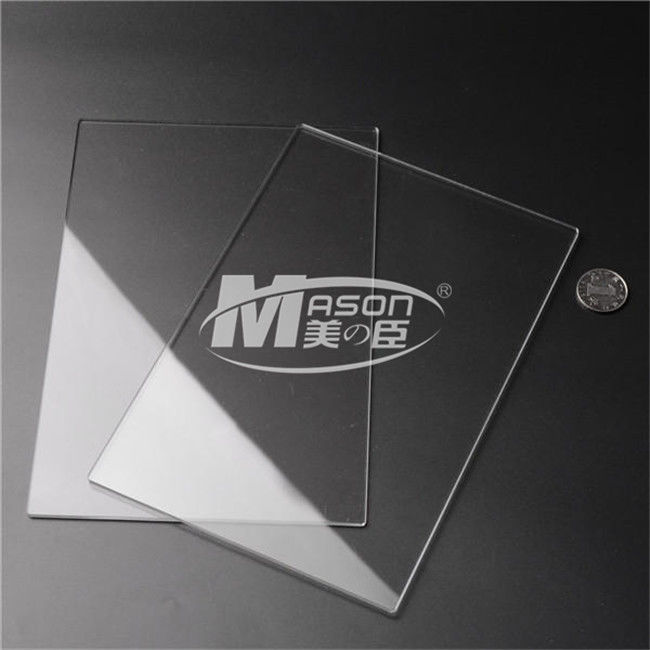

Mason Heat Resistant Clear Acrylic Plastic Sheets
Pespex For Sneeze Guard
Description
Produced from methyl methacrylate monomer,clear cast acrylic sheets have outstanding optical properties,
excellent weather resistance,uniform caliper control and high impact resistance.It has exceptional freedom
from warpage,cracks,scratches,blisters,voids,foreign matter and other defects which may affect appearance
or serviceability.
Applications
Clear cast acrylic sheets are used where safety, light weight, optical clarity, and long- term retention of
properties are important. Applications with glazing for institutional, industrial and commercial buildings,
skylights and domes, shields and guards, lighting fixtures, solar panels and signage of all types.
| Item | Test Result | Item | Test Result |
| Transmittance% | 94 | Tensile Strain at Break, Mpa | 5 |
| Rockwell Hardness(M) | 97 | Modulus of elasticity in tension, Mpa | 3.03 |
| Vicat Softening Temperature(1.8MPA) | 101 | Rockwell Hardness(R) | 124 |
| Coefficient of Thermal Expansion ℃-1 | 7.0*10-5 | Resistance to crazing in solvent | No crazing |
| Dimensional Stability(shrinkage) % | 1.9 | Charpy Non-notch Impact Strength KJ/M2 | 21.9(C) |
| Tensile strength, Mpa | 74.7 |
| Code | Size with rubber edge | Size after cut edge |
| Q | 1250*1850mm | 1210*1820mm |
| L0 | 1250*2450mm(Include Frosted) | 1210*2420mm(Include Frosted) |
| L1 | 1270*2490mm | 1220*2440mm |
| L2 | 1310*2530mm | 1270*2490mm |
| L3 | 1350*2570mm | 1310*2530mm |
| Y | 1650*2600mm | 1610*2660mm |
| N | 1550*3050mm | 1510*3020mm |
| M | 2050*3050mm(Include Frosted) | 2010*3010mm(Include Frosted) |
Product Display
FOCUS ON ACRYLIC ONE STOP SOLUTION
Will not deteriorate after many years of service because of the inherent stability of acrylic resins
100% VIRGIN PMMA
QUALITY FIRST, DO A GOOD JOB IN EVERY PROCESS, IS OUR ETERNAL COMMITMENT TO CUSTOMERS.
Clear cast acrylic sheets are light weight and easily fabricated.
Clear cast acrylic sheets have a high molecular weight and uniform thickness.
PRODUCED BY CASTING TECHNOLOGY
MASON PMMA sheet is produced by the famous brand MMA and matching all kinds of latest imported
assembly line production equipment as well as Pilkington glass molds imported from British.
Acrylic perspex sheets thickness tolerances are +/- 10%
0.100" (2.5mm) and 10mm thicker acrylic sheet with variations throughout the sheet.
PACKING DETAILS
Acrylic plexiglass plastic sheets suface protection with PE film or craft paper masking.
Clear plexiglass sheet only half the weight of glass and 43% the weight of aluminum.
