Product Details:
|
|
| Place of Origin: | China |
|---|---|
| Brand Name: | Mason |
| Certification: | SGS CE |
| Model Number: | M-000 |
|
Payment & Shipping Terms:
|
|
| Minimum Order Quantity: | 60 perspex sheets |
| Price: | Negotiable |
| Packaging Details: | Max 1500kgs on one pallet |
| Delivery Time: | 15DAYS |
| Payment Terms: | T/T, Western Union, Western Union |
| Supply Ability: | 1000sheets PER DAY |

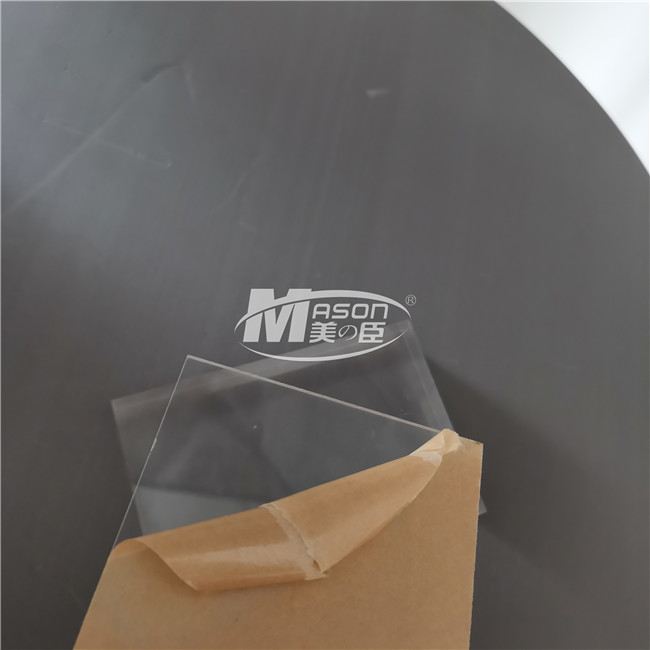

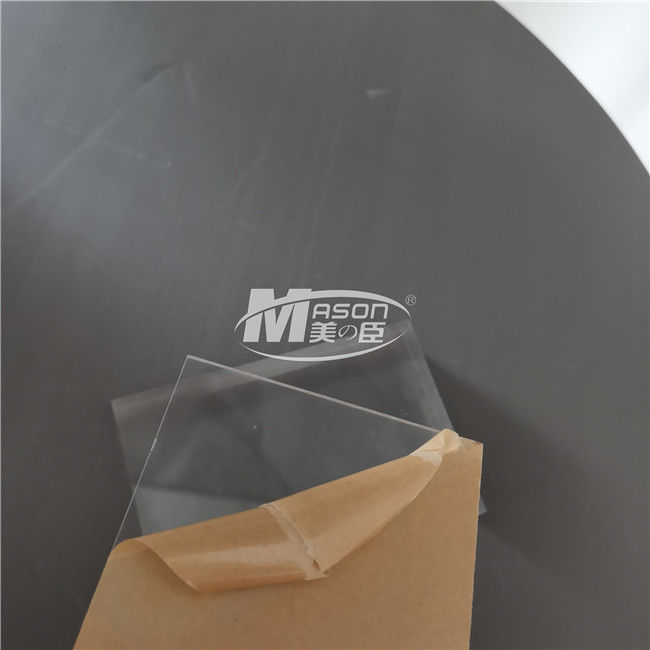

High Quality 3mm 48''X96'' Cleal Perspex Sheet Cast
Transparent Acrylic Sheet
Description
Clear cast acrylic sheets have outstanding optical properties, excellent weather resistance, uniform caliper
control and high impact resistance. It has exceptional freedom from warpage, cracks, scratches, blisters,
voids,foreign matter and other defects which may affect appearance or serviceability.
Also, clear cast acrylic sheets are light weight and easily fabricated. Clear cast acrylic sheets have a high
molecular weight and uniform thickness.
Applications
Clear cast acrylic sheets are used where safety, light weight, optical clarity, and long- term retention of
properties are important. Applications include glazing for institutional, industrial and commercial buildings,
skylights and domes, shields and guards, lighting fixtures, solar panels and signage of all types.
MASON CLEAR CAST ACRYLICPARAMETER
| Item | Test Result | Item | Test Result |
| Transmittance% | 94 | Tensile Strain at Break, Mpa | 5 |
| Rockwell Hardness(M) | 97 | Modulus of elasticity in tension, Mpa | 3.03 |
| Vicat Softening Temperature(1.8MPA) | 101 | Rockwell Hardness(R) | 124 |
| Coefficient of Thermal Expansion ℃-1 | 7.0*10-5 | Resistance to crazing in solvent | No crazing |
| Dimensional Stability(shrinkage) % | 1.9 | Charpy Non-notch Impact Strength KJ/M2 | 21.9(C) |
| Tensile strength, Mpa | 74.7 |
MASON ACRYLIC SPECIFICATION
| Code | Size with rubber edge | Size after cut edge |
| Q | 1250*1850mm | 1210*1820mm |
| L0 | 1250*2450mm(Include Frosted) | 1210*2420mm(Include Frosted) |
| L1 | 1270*2490mm | 1220*2440mm |
| L2 | 1310*2530mm | 1270*2490mm |
| L3 | 1350*2570mm | 1310*2530mm |
| Y | 1650*2600mm | 1610*2660mm |
| N | 1550*3050mm | 1510*3020mm |
Product Display
FOCUS ON ACRYLIC ONE STOP SOLUTION
Economical, provides tight thickness tolerance, high optical characteristics, and low stress levels
100% VIRGIN PMMA
Clear, colorless premium sheet has a light transmittance of 94%.
This sheet will withstand exposure to blazing sun, extreme cold, sudden temperature changes, salt water
spray, etc.
PRODUCED BY CASTING TECHNOLOGY
MASON acrylic is produced by the famous brand MMA and matching all kinds of latest imported assembly
line production equipment as well as Pilkington glass molds imported from British.
The tolerance control of plates is very strict, and each plate needs to be adjusted and inspected three times
through the gauge.
PACKING DETAILS
Check at each level from quality inspection and inventory management to accurate distribution to the
customer warehouse to present perfection.
With perfect after-sales service assurance system, we will arrange relevant personnel to solve at the first
time in case of quality problem in the product and never pass the buck.
