Product Details:
|
|
| Place of Origin: | China |
|---|---|
| Brand Name: | Mason |
| Certification: | SGS CE |
| Model Number: | M-000 |
|
Payment & Shipping Terms:
|
|
| Minimum Order Quantity: | 45SHEETS |
| Price: | Negotiable |
| Packaging Details: | Max 1500kgs on one pallet |
| Delivery Time: | 7-15DAYS |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 10000KGS PER DAY |

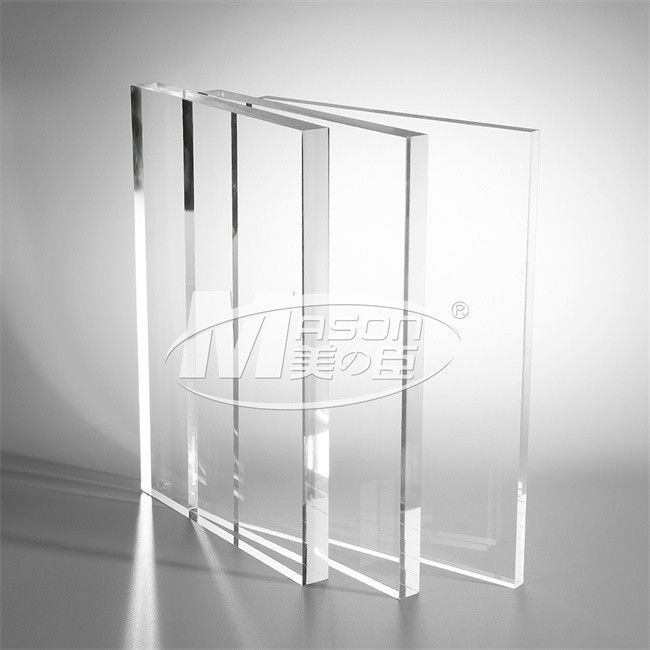

Mason Factory Direct Price Standard Size Plexiglass
Sheets Transparent Cast Acrylic Sheet
Description
Clear Plexiglass (acrylic) sheet is a versatile plastic material that has great impact strength and exceptional
optical quality. It is 10 times stronger than glass and half the weight.
Applications
Clear plexiglass sheets can be used for a number of applications such as signage, glazing,picture framing,
aquarium tanks,and more.Plexiglass can be sawed,drilled,routed,laser cut,painted,silkscreened and formed.
MASON CLEAR CAST ACRYLIC PARAMETER
|
Item |
Test Result |
Item |
Test Result |
|
Transmittance% |
94 |
Tensile Strain at Break, Mpa |
5 |
|
Rockwell Hardness(M) |
97 |
Modulus of elasticity in tension, Mpa |
3.03 |
|
Vicat Softening Temperature(1.8MPA) |
101 |
Rockwell Hardness(R) |
124 |
|
Coefficient of Thermal Expansion ℃-1 |
7.0*10-5 |
Resistance to crazing in solvent |
No crazing |
|
Dimensional Stability(shrinkage) % |
1.9 |
Charpy Non-notch Impact Strength KJ/M2 |
21.9(C) |
|
Tensile strength, Mpa |
74.7 |
|
MASON ACRYLIC SPECIFICATION
(The specification is 3mm plate, size will decreases with the increase of thickness)
| Code | Size with rubber edge | Size after cut edge |
| Q | 1250*1850mm | 1210*1820mm |
| L0 | 1250*2450mm | 1210*2420mm |
| L1 | 1270*2490mm | 1220*2440mm |
| L2 | 1310*2530mm | 1270*2490mm |
| L3 | 1350*2570mm | 1310*2530mm |
| N | 1550*3050mm | 1510*3020mm |
| M | 2050*3050mm | 2010*3010mm(Include Frosted) |
Product Display
FOCUS ON ACRYLIC SHEETS ONE STOP SOLUTION
For clear acrylic sheet,we can supply various thickness like following:
1/8" = 3mm = 0.118"
3/16" = 4.5mm = 0.177"
1/4" = 5.5mm = 0.22"
3/8" = 9mm = 0.354"
1/2" = 12mm = 0.472"
3/4" = 18mm =0.708"
1" = 24mm = 0.944"
100% VIRGIN PMMA
Quality is fundamental to our survival, selection of raw materials is the basis of our work and providing
different levels of products according to customer needs is our responsibility.
PRODUCED BY CASTING TECHNOLOGY
MASON acrylic is produced by the famous brand MMA and matching all kinds of latest imported assembly
line production equipment as well as Pilkington glass molds imported from British.
PACKING DETAILS
FAQS
Where is your factory?
Our factory is in Huzhou city,Zhejiang province ,near shanghai ,only 2 hours by car. It
is much convenient to visit our factory.
What's the delivery date?
Delivery time is very fast, only need about 10 days.
How is the customer service?
We have very professional sales team and after sales team which with at least 3 years’
experience. So we could response you within one hour.
