Product Details:
|
|
| Place of Origin: | China |
|---|---|
| Brand Name: | Mason |
| Certification: | SGS CE |
| Model Number: | M-000 |
|
Payment & Shipping Terms:
|
|
| Minimum Order Quantity: | 45SHEETS |
| Price: | Negotiable |
| Packaging Details: | Max 1500kgs on one pallet |
| Delivery Time: | 7-15DAYS |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 10000KGS PER DAY |
Applications
Ideal for point of purchase display, store fixture, novelty, accessory, lighting, and in sign or
lettering applications.
| Item | Test Result | Item | Test Result |
| Transmittance% | 94 | Tensile Strain at Break, Mpa | 5 |
| Rockwell Hardness(M) | 97 | Modulus of elasticity in tension, Mpa | 3.03 |
| Vicat Softening Temperature(1.8MPA) | 101 | Rockwell Hardness(R) | 124 |
| Coefficient of Thermal Expansion ℃-1 | 7.0*10-5 | Resistance to crazing in solvent | No crazing |
| Dimensional Stability(shrinkage) % | 1.9 | Charpy Non-notch Impact Strength KJ/M2 | 21.9(C) |
| Tensile strength, Mpa | 74.7 |
| Code | Size with rubber edge | Size after cut edge |
| Q | 1250*1850mm | 1210*1820mm |
| L0 | 1250*2450mm(Include Frosted) | 1210*2420mm(Include Frosted) |
| L1 | 1270*2490mm | 1220*2440mm |
| L2 | 1310*2530mm | 1270*2490mm |
| L3 | 1350*2570mm | 1310*2530mm |
| Y | 1650*2600mm | 1610*2660mm |
| N | 1550*3050mm | 1510*3020mm |
| M | 2050*3050mm(Include Frosted) | 2010*3010mm(Include Frosted) |

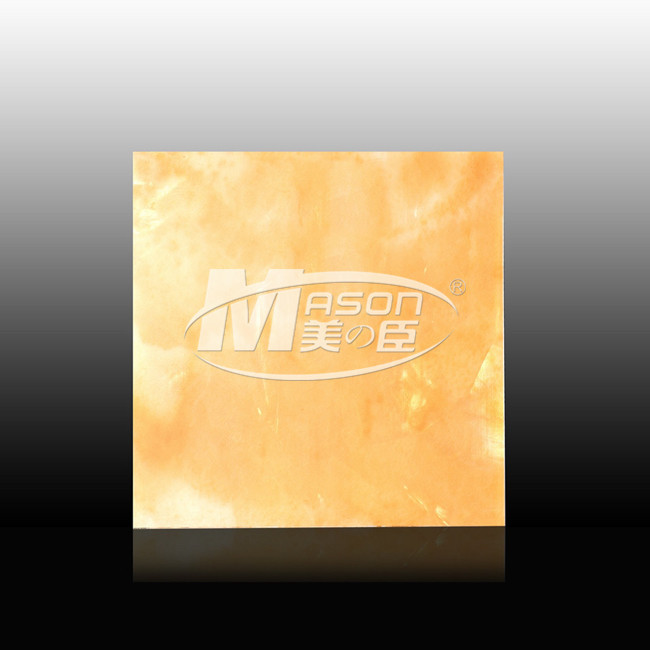

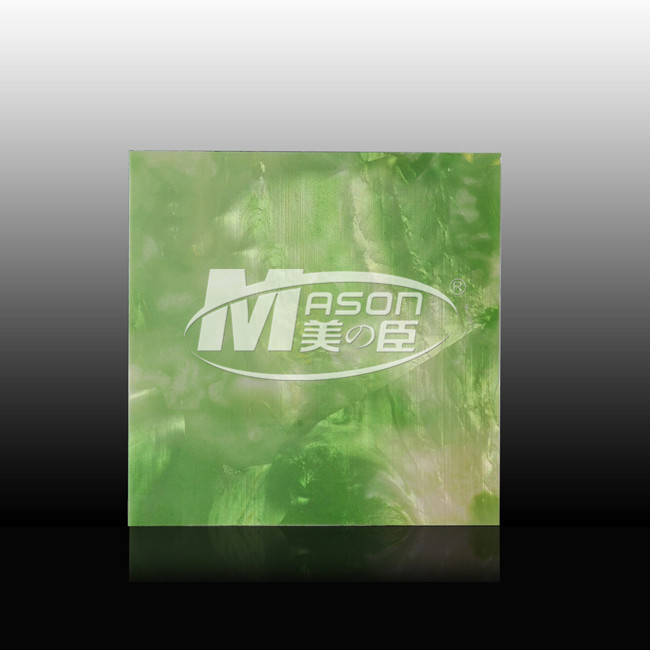

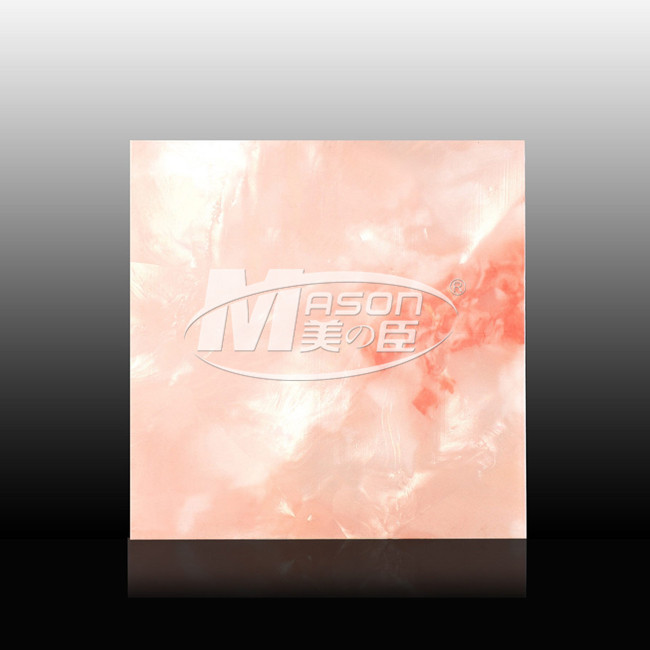

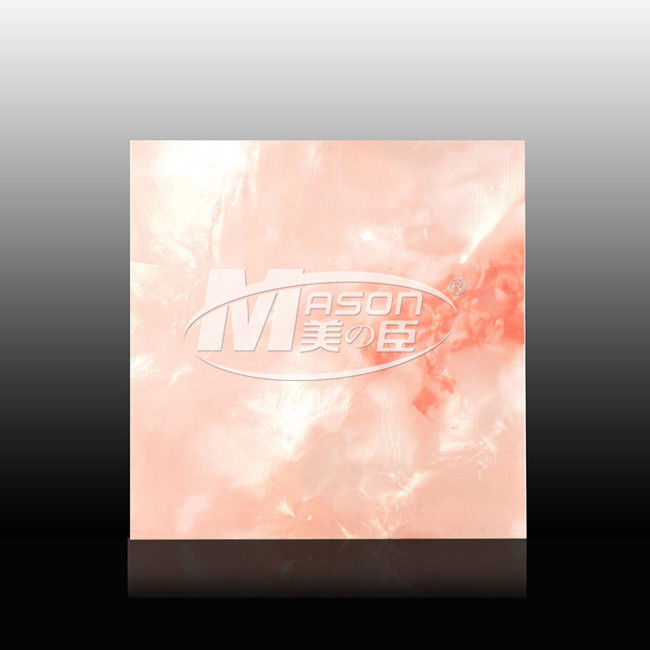

Product Display
FOCUS ON ACRYLIC ONE STOP SOLUTION
Since 2008, MASON acrylic sheet has injected new vitality into acrylic industry, let more users
experience the charm of acrylic.
100% VIRGIN PMMA
QUALITY FIRST, DO A GOOD JOB IN EVERY PROCESS, IS OUR ETERNAL COMMITMENT TO CUSTOMERS.
Quality is fundamental to our survival, selection of raw materials is the basis of our work
and providing different levels of products according to customer needs is our responsibility.
The selection of raw materials is very strict and meticulous. Lucite and Mitsubishi are
our long-term raw material suppliers.
PRODUCED BY CASTING TECHNOLOGY
MASON acrylic is produced by the famous brand MMA and matching all kinds of
latest imported assembly line production equipment as well as Pilkington glass molds
imported from British.
The tolerance control of plates is very strict, and each plate needs to be adjusted and
inspected three times through the gauge.
PACKING DETAILS
Check at each level from quality inspection and inventory management to accurate
distribution to the customer warehouse to present perfection.
With perfect after-sales service assurance system, we will arrange relevant personnel to
solve at the first time in case of quality problem in the product and never pass the buck.
