Product Details:
|
|
| Place of Origin: | Shanghai |
|---|---|
| Brand Name: | Mason |
| Certification: | CE, SGS |
| Model Number: | MCL0010 |
|
Payment & Shipping Terms:
|
|
| Minimum Order Quantity: | 45 sheets |
| Price: | Negotiable |
| Packaging Details: | Pallet 1250x2450mm |
| Delivery Time: | 5-9days |
| Payment Terms: | T/T, Western Union, MoneyGram, L/C |
| Supply Ability: | 5 tons/day |

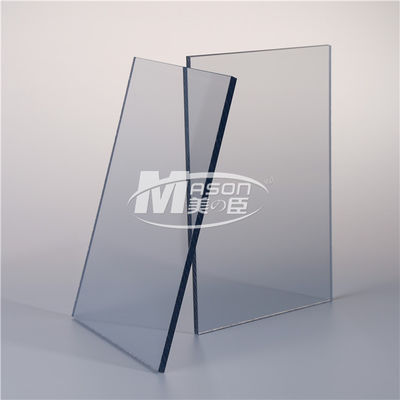

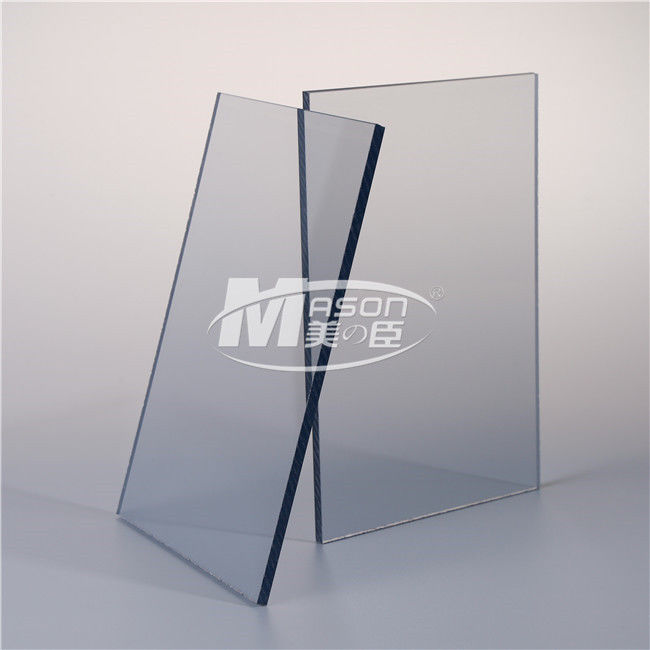

MASON Anti-Static Plexiglass ESD Plastic Acrylic Sheet
Specification
MASON Electrostatic discharge (ESD) plastic sheets are coated with a trans-parent metal/plastic material
that will permanently prevent formation of static electricity on the surface.The surface has excellent mar and
abrasion resistance.Material is resistance to charge generation,and has superior static decay characteristics.
It cannot be tribocharged. The product displays excellent control of both electrostatic discharge (ESD) and
particulate attraction. Permanent characteristics are not affected by humidity.
| Mould | Size with rubber edge | Size after cut edge |
| 1 | 1060x2060mm | 1050x2050mm(3.4'x6.7') |
| 2 | 1250x1850mm | 1220x1830mm(4'x6') |
| 3 | 1250x2450mm | 1220x2440mm(4'x8') |
| 4 | 1270x2490mm | 1240x2460mm(4'x8') |
Note:The size after cut edge refers to 3-20mm, other thickness after cutting,the actual size will have some
difference.
1. STANDARD SURFACE RESISTIVITY OF 106 TO 108 Ω PER SQUARE (AVAILABILITY OF A
GREATERRANGE IF NEEDED).
2. ELECTROSTATIC DECAY LESS THAN 0.05 SECONDS (FEDERAL TEST STANDARD 101C, METHOD
4046-1)
3. PERMANENT STATIC DISSIPATION PERFORMANCE.
ESD plate application
