Product Details:
|
|
| Place of Origin: | China |
|---|---|
| Brand Name: | Mason |
| Certification: | SGS CE |
| Model Number: | M-000 |
|
Payment & Shipping Terms:
|
|
| Minimum Order Quantity: | 60SHEETS |
| Price: | Negotiable |
| Packaging Details: | About 1680kgs for one pallet |
| Delivery Time: | 9-12DAYS |
| Payment Terms: | T/T, Western Union, L/C |
| Supply Ability: | 1000KGS PER DAY |

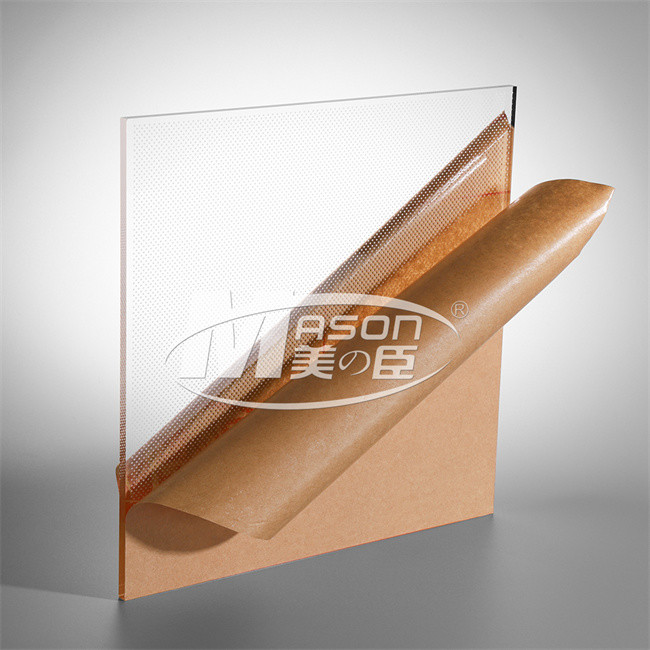

100% Virgin Material Clear Acrylic Sheet Perspex
Plastic Sheet Acrylic Plate
Information
Name: Cast Acrylic Sheet
Color: Clear
Grade: Optical
Specifications: 1220*2440mm;
2050*3050mm etc.
Parameter
Density: 1.2kg/m3
Thickness: 1.8-200mm
Transmittance: 93.4%
Raw Material: Lucite/Mitsubishi MMA
Why choose Mason
1. DIRECT FACTORY
All customers enjoy the ex-work price, OEM/ODM: Label, Logo are acceptable
2. QUALITY ASSURANCE
All raw materials only use world famous brands, 100% new materials
3. DELIVERY GUARANTEE
Six advanced automatic production lines, 400+ workers, 10+ years of production experience, with an average
daily output of 130 tons of acrylic sheet
4. CREDIT GUARANTEE
Ali gold supplier, has passed the TUV certification
MASON CLEAR CAST ACRYLIC PARAMETER
|
Item |
Test Result |
Item |
Test Result |
| Transmittance% | 94 | Tensile Strain at Break, Mpa | 5 |
| Rockwell Hardness(M) | 97 | Modulus of elasticity in tension, Mpa | 3.03 |
| Vicat Softening Temperature(1.8MPA) | 101 | Rockwell Hardness(R) | 124 |
| Coefficient of Thermal Expansion ℃-1 | 7.0*10-5 | Resistance to crazing in solvent | No crazing |
| Dimensional Stability(shrinkage) % | 1.9 | Charpy Non-notch Impact Strength KJ/M2 | 21.9(C) |
| Tensile strength, Mpa | 74.7 |
MASON ACRYLIC SPECIFICATION
(The specification is 3mm plate, size will decreases with the increase of thickness)
| Code | Size with rubber edge | Size after cut edge |
| Q | 1250*1850mm | 1210*1820mm |
| L0 | 1250*2450mm | 1210*2420mm |
| L1 | 1270*2490mm | 1220*2440mm |
| L2 | 1310*2530mm | 1270*2490mm |
| L3 | 1350*2570mm | 1310*2530mm |
| N | 1550*3050mm | 1510*3020mm |
Product Display
FOCUS ON ACRYLIC ONE STOP SOLUTION
100% VIRGIN PMMA
PRODUCED BY CASTING TECHNOLOGY
PACKING DETAILS
FAQS
Do you have a acrylic sheet price discount?
We have preferential policy to our customers. When your annual purchase amount is over $1500000, we will
give you 2% of the amount in return.
Can I have acrylic samples?
Free samples can be sent to test quality.
What material you use for acrylic sheet?
Acrylic material with 100% virgin MMA, transmittance reach 93-94%.
