100% Vigin MMA Plastic Acrylic Sheet Pmma Cast

Product Details:
Place of Origin: China
Brand Name: Mason
Certification: SGS CE
Model Number: M-000
Payment & Shipping Terms:
Minimum Order Quantity: 45SHEETS
Price: Negotiable
Packaging Details: Max 1500kgs on one pallet
Delivery Time: 7-15DAYS
Payment Terms: T/T, Western Union
Supply Ability: 10000KGS PER DAY
Specifications Product Description Request A Quote
Specifications
Specifications
Product Name: 100% Vigin MMA Material Plastic Acrylic Sheet Pmma Cast Plexiglass Sheet
Thickness: 3mm-20mm
Size: 122*183cm/122*244cm/151*301cm
Material: 100% Virgin Material
Color: Clear000
Application: Acrylic Box,display Rack,advertising,sign And Ect
Feature: Light Weight And Good Resistance To Impact
Packing: Film,Protect Corner And Pallet
High Light:

MMA Plastic Acrylic Sheet

,

CE clear plastic acrylic sheets

,

Plastic Acrylic Sheet Pmma Cast

Product Description



100% Vigin MMA Material Plastic Acrylic Sheet Pmma

                            Cast Plexiglass Sheet





100% Vigin MMA Plastic Acrylic Sheet Pmma Cast 0









       Information

       Name: Cast Acrylic Sheet

       Color: Clear

       Grade: Optical

       Specifications:1220*2440mm;

       1510*3020mm etc.



       Parameter

       Density: 1.2kg/m3

       Thickness: 3-20mm

       Transmittance: 93.4%

       Raw Material: Lucite MMA







Description

Cast plexiglass is the highest quality plexiglass acrylic and more cheaper than extruded because it offers the

best optical clarity, greater thermal stability, and higher chemical resistance to solvents. Cast plexiglass acrylic

has a less consistent sheet thickness with up to +/-10% variation possible across the panel;it is thermo-formable

and can be reworked hot, which is not always possible with extruded sheets.



Applications

ADVERTISING SIGNAGE, FURNITURE AND DESIGN, VISUAL COMMUNICATION, LIGHTING ETC



100% Vigin MMA Plastic Acrylic Sheet Pmma Cast 1



MASON CLEAR CAST ACRYLIC PARAMETER

Item

Test Result

Item

Test Result

Transmittance%

94

Tensile Strain at Break, Mpa

5

Rockwell Hardness(M)

97

Modulus of elasticity in tension, Mpa

3.03

Vicat Softening Temperature(1.8MPA)

101

Rockwell Hardness(R)

124

Coefficient of Thermal Expansion ℃-1

7.0*10-5

Resistance to crazing in solvent

No crazing

Dimensional Stability(shrinkage) %

1.9

Charpy Non-notch Impact Strength KJ/M2

21.9(C)

Tensile strength, Mpa

74.7







MASON ACRYLIC SPECIFICATION

(The specification is 3mm plate, size will decreases with the increase of thickness)

Code

Size with rubber edge

Size after cut edge

Q

1250*1850mm

1210*1820mm

L0

1250*2450mm

1210*2420mm

L1

1270*2490mm

1220*2440mm

L3

1350*2570mm

1310*2530mm

N

1550*3050mm

1510*3020mm

M

2050*3050mm

2010*3010mm



Product Display

100% Vigin MMA Plastic Acrylic Sheet Pmma Cast 2



FOCUS ON ACRYLIC ONE STOP SOLUTION

100% Vigin MMA Plastic Acrylic Sheet Pmma Cast 3



100% VIRGIN PMMA

100% Vigin MMA Plastic Acrylic Sheet Pmma Cast 4



Quality is fundamental to our survival, selection of raw materials is the basis of our work and providing

different levels of products according to customer needs is our responsibility.

100% Vigin MMA Plastic Acrylic Sheet Pmma Cast 5



PRODUCED BY CASTING TECHNOLOGY

MASON acrylic is produced by the famous brand MMA and matching all kinds of latest imported assembly

line production equipment as well as Pilkington glass molds imported from British.

100% Vigin MMA Plastic Acrylic Sheet Pmma Cast 6

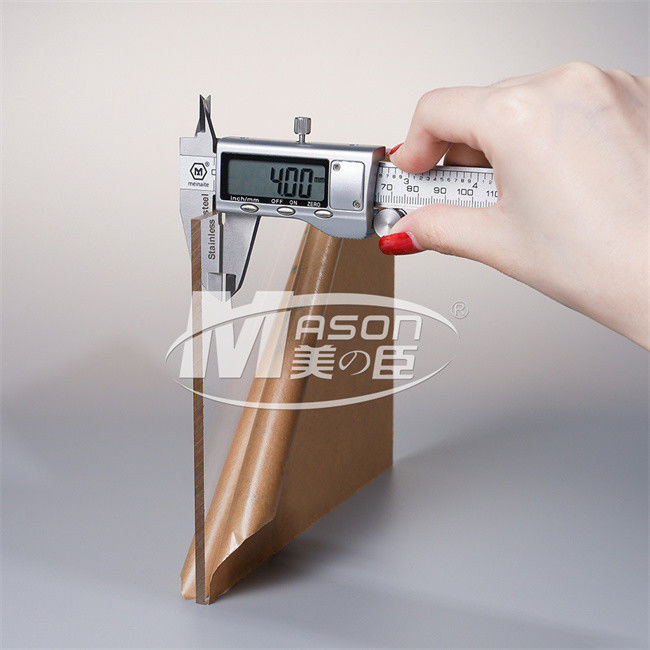

The tolerance control of plates is very strict, and each plate needs to be adjusted and inspected three times

through the gauge.

100% Vigin MMA Plastic Acrylic Sheet Pmma Cast 7



PACKAGES

100% Vigin MMA Plastic Acrylic Sheet Pmma Cast 8

100% Vigin MMA Plastic Acrylic Sheet Pmma Cast 9



FAQS



Do you have other service?

Besides acrylic sheet material, we also do acrylic cut to size, polish and make acrylic products.



What's your advantage?

We have competitive price cause we usually sell with big lot



What type acrylic sheet do you sell?

Our do many type acrylic sheet, like clear acrylic,color acrylic,forested acrylic ,mirror acrylic,ESD acrylic,

sanitary special acrylic and ect. you could mix the type for ur order if u need.
